Battery Negative Cable Disconnection and Connection

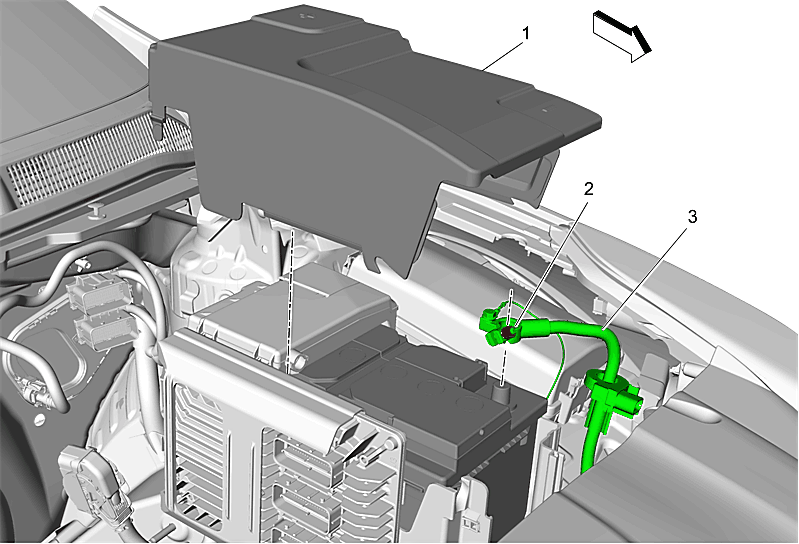

Fig 1: View Of Battery Negative Cable & Cover
GM4778532Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Turn the ignition OFF and remove the ignition key.
  2. Record all of the radio station presets.
  3. Record the remaining engine oil life.
1 Battery Cover
2 Battery Negative Post Clamp Nut
WARNING:

Refer to Battery Disconnect Warning .

CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
3 Battery Negative Cable
