Installation Procedure

  1. Install the wheel speed sensor harness to the body wiring harness conduit and secure the conduit with tape.
  2. Install the harness conduit to the vehicle.

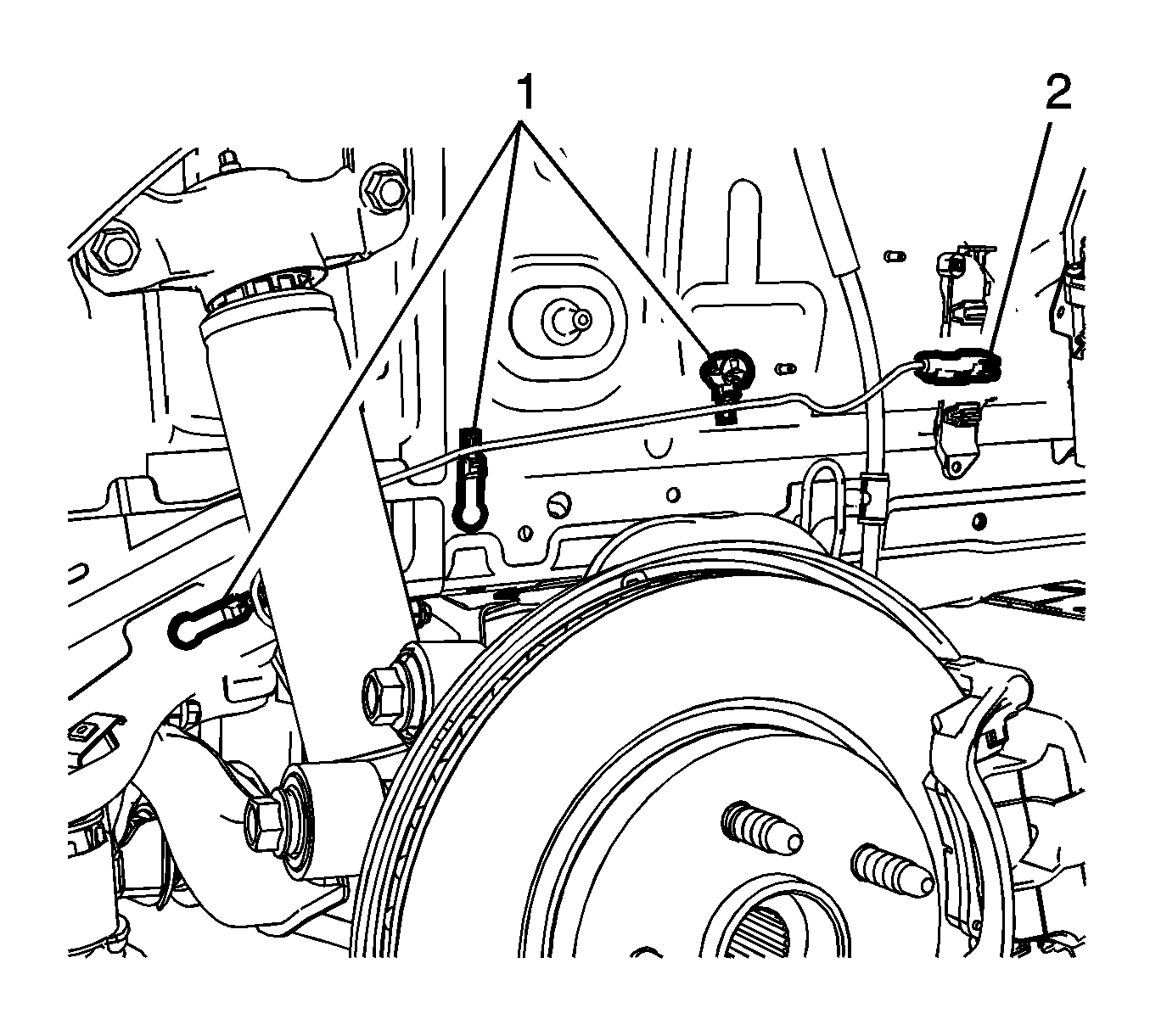

    3. Fig 1: Rear Wheel Speed Sensor Harness Electrical Connector & Clips (J64)
    GM2753962Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness clips (1) to the wheelhouse panel.
  4. Install the wheel speed sensor harness electrical connector (2) to the harness bracket.
  5. Connect the wheel speed sensor harness electrical connector.

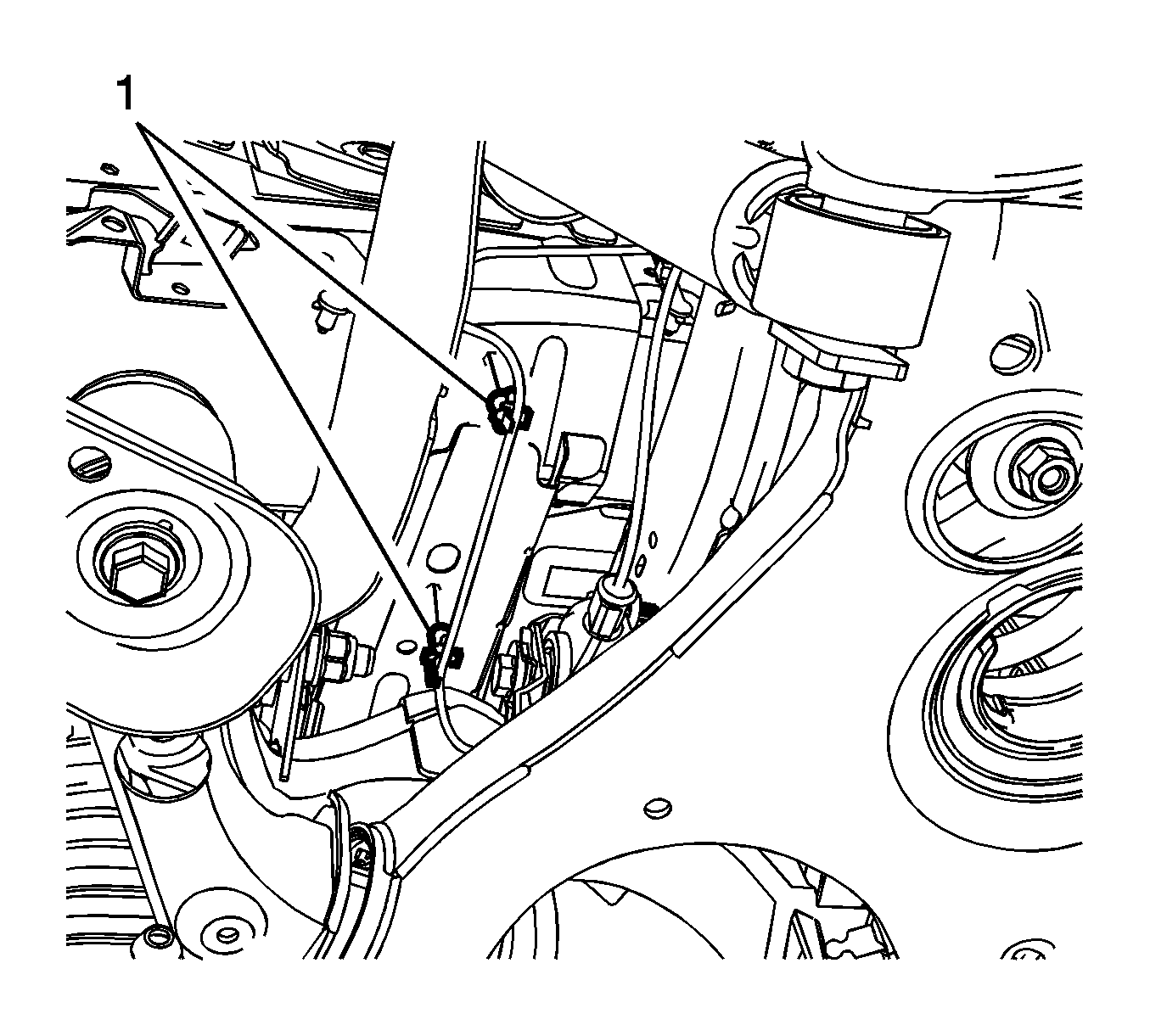

    6. Fig 2: Rear Wheel Speed Sensor Harness Clips (J64)
    GM2753960Courtesy of GENERAL MOTORS COMPANY
  6. Install the wheel speed sensor harness clips (1) to the rear underbody crossmember.

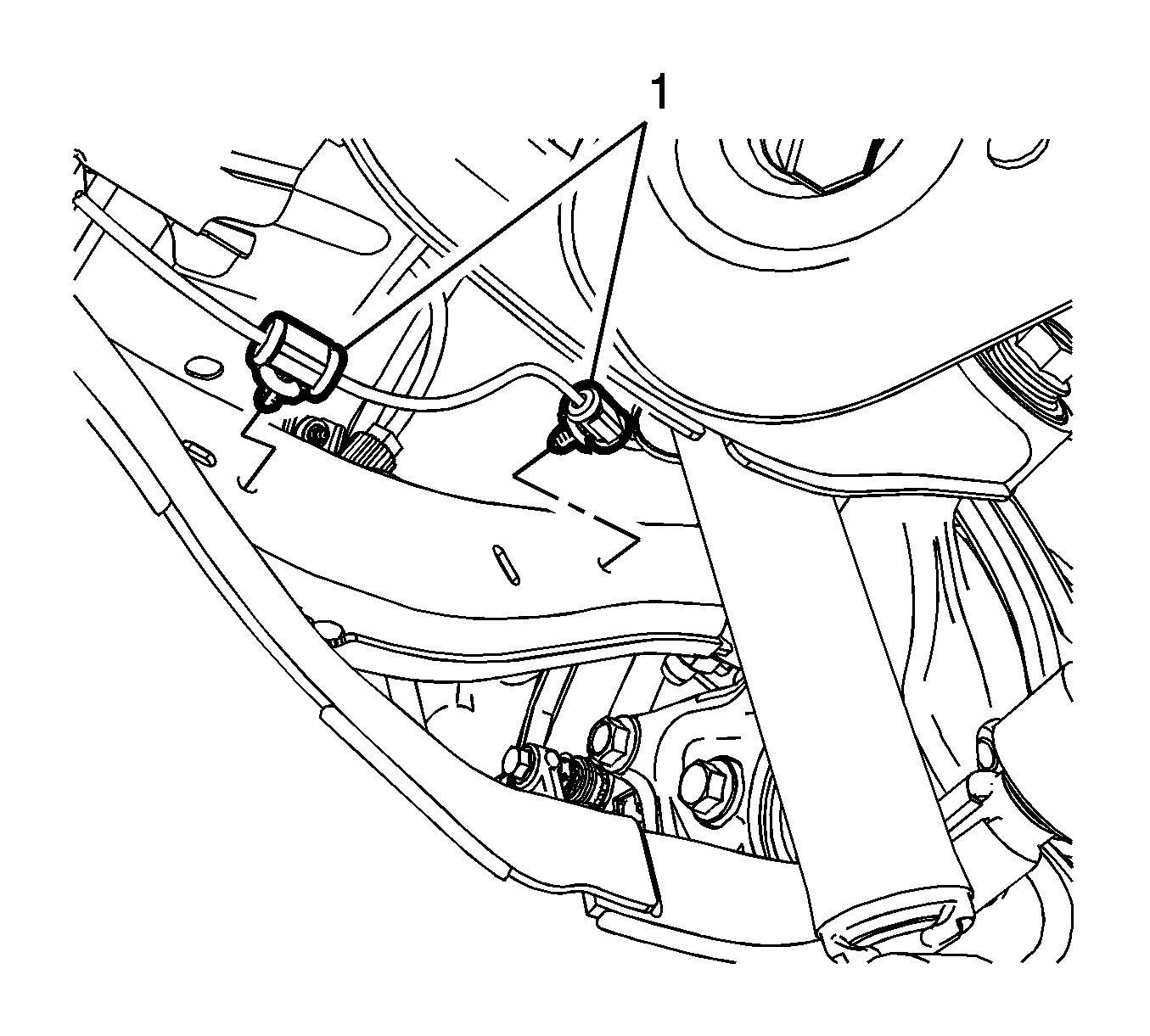

    7. Fig 3: Rear Wheel Speed Sensor Harness Clips (J64)
    GM2753959Courtesy of GENERAL MOTORS COMPANY
  7. Install the wheel speed sensor harness clips (1) to the upper suspension arm.

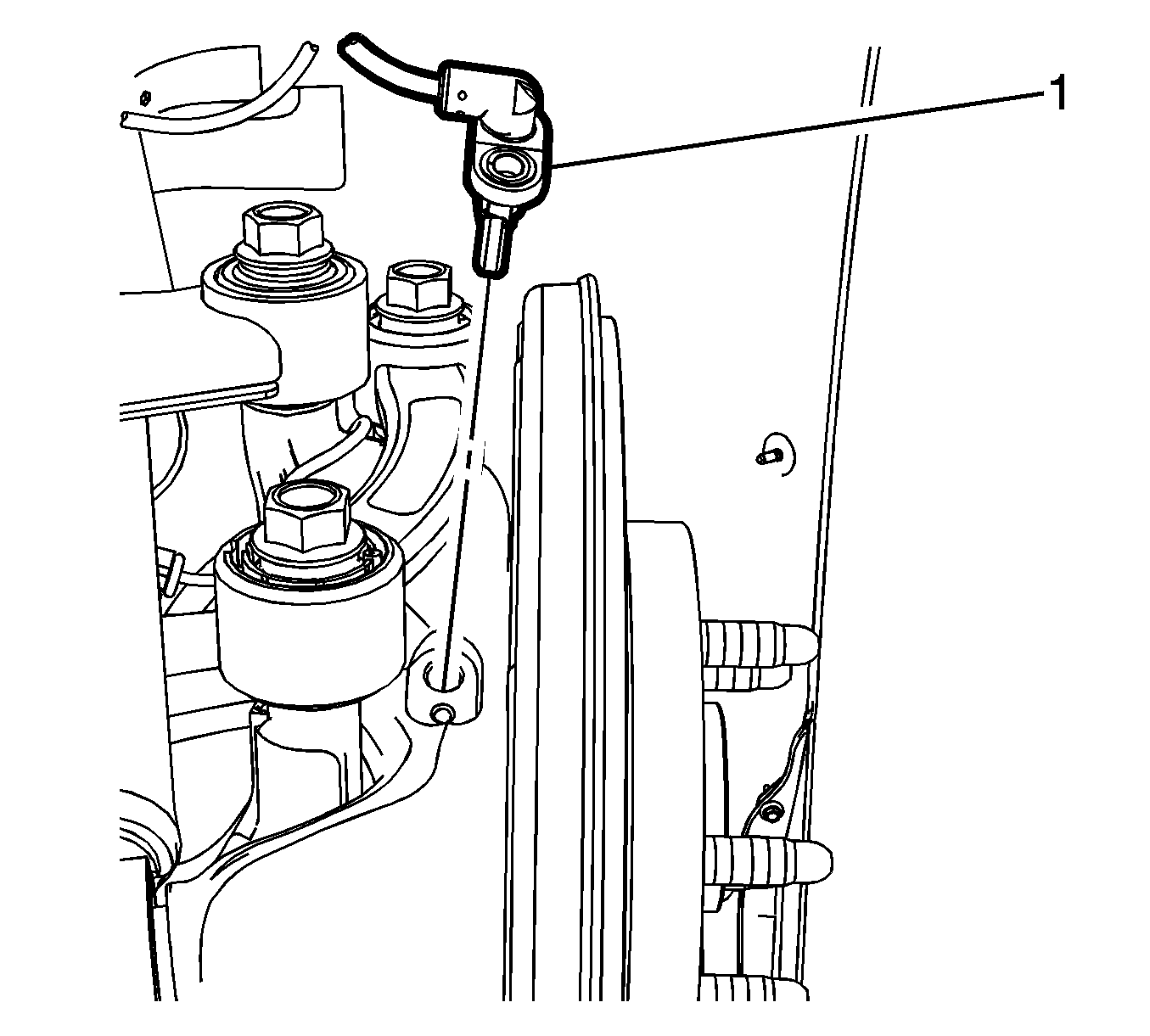

    8. Fig 4: Rear Wheel Speed Sensor (J64)
    GM2753957Courtesy of GENERAL MOTORS COMPANY
  8. Install the wheel speed sensor (1) to the rear suspension knuckle.

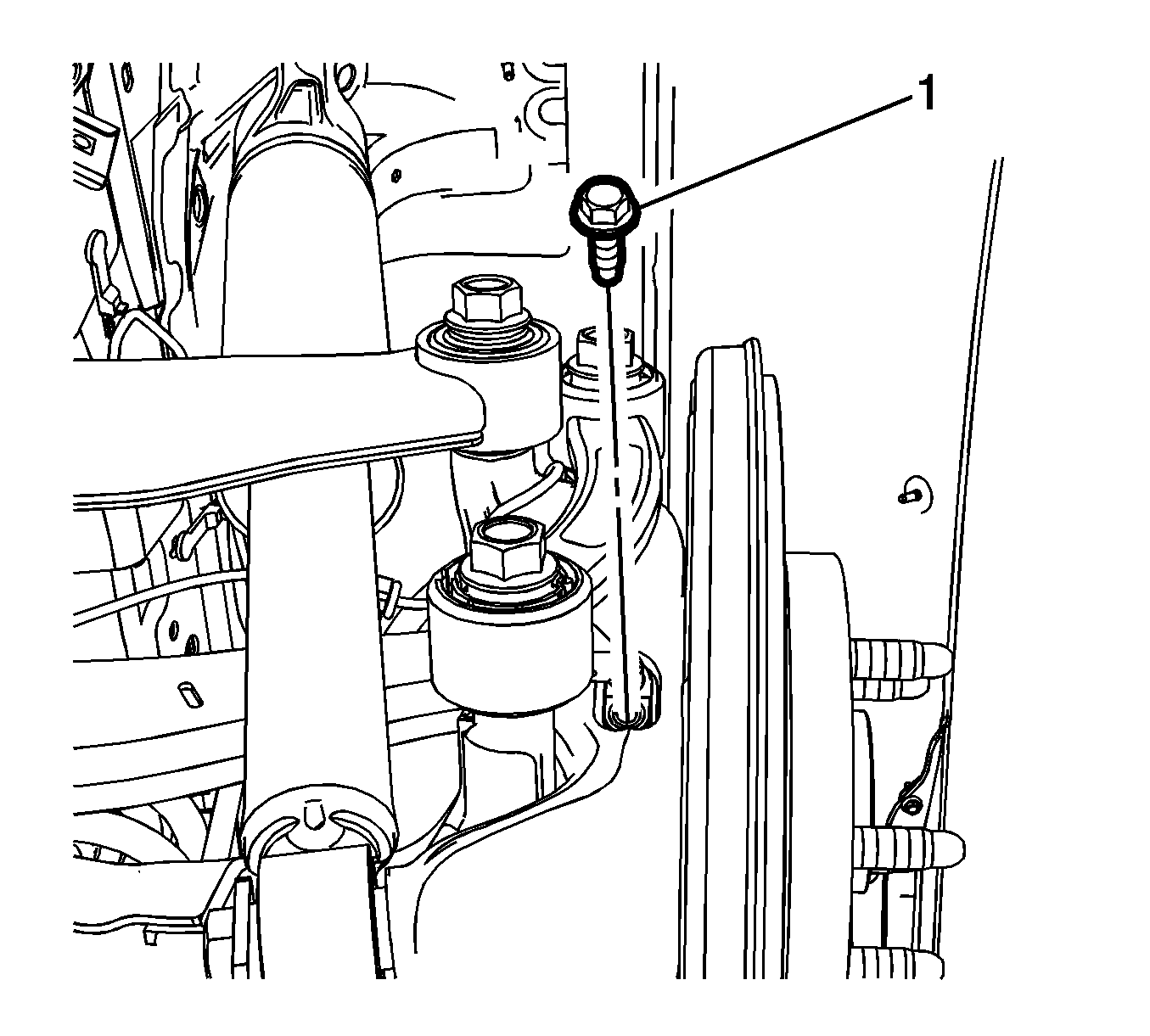

    9. Fig 5: Rear Wheel Speed Sensor Bolt (J64)
    GM2753956Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  9. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).
  10. Install the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
  11. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J64) .
  12. Perform the Diagnostic System Check - Vehicle .
