Installation Procedure

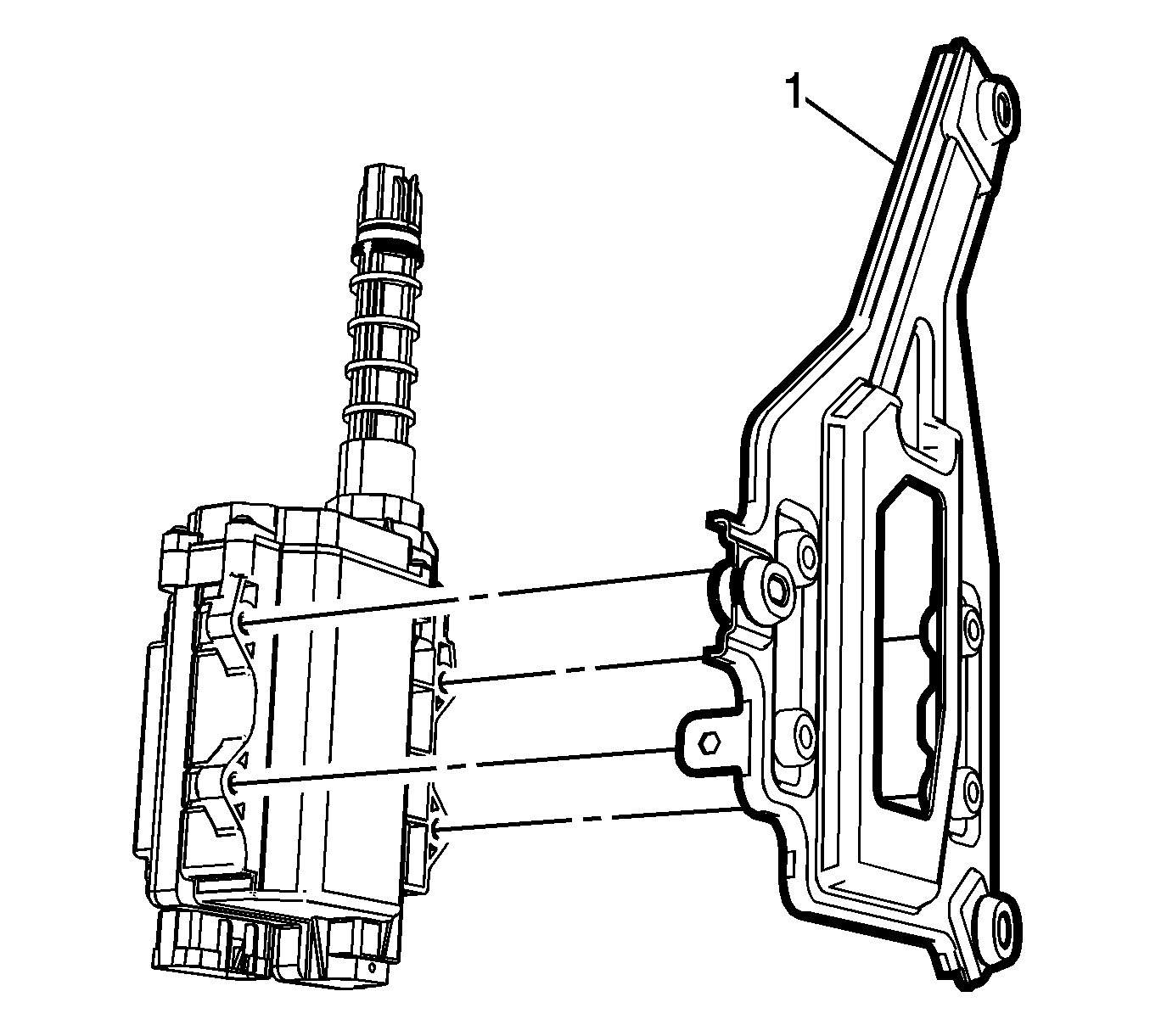

    Fig 1: Electronic Parking Brake Control Modulator Bracket
    GM2752683Courtesy of GENERAL MOTORS COMPANY
  1. Install the electronic parking brake control modulator bracket (1).

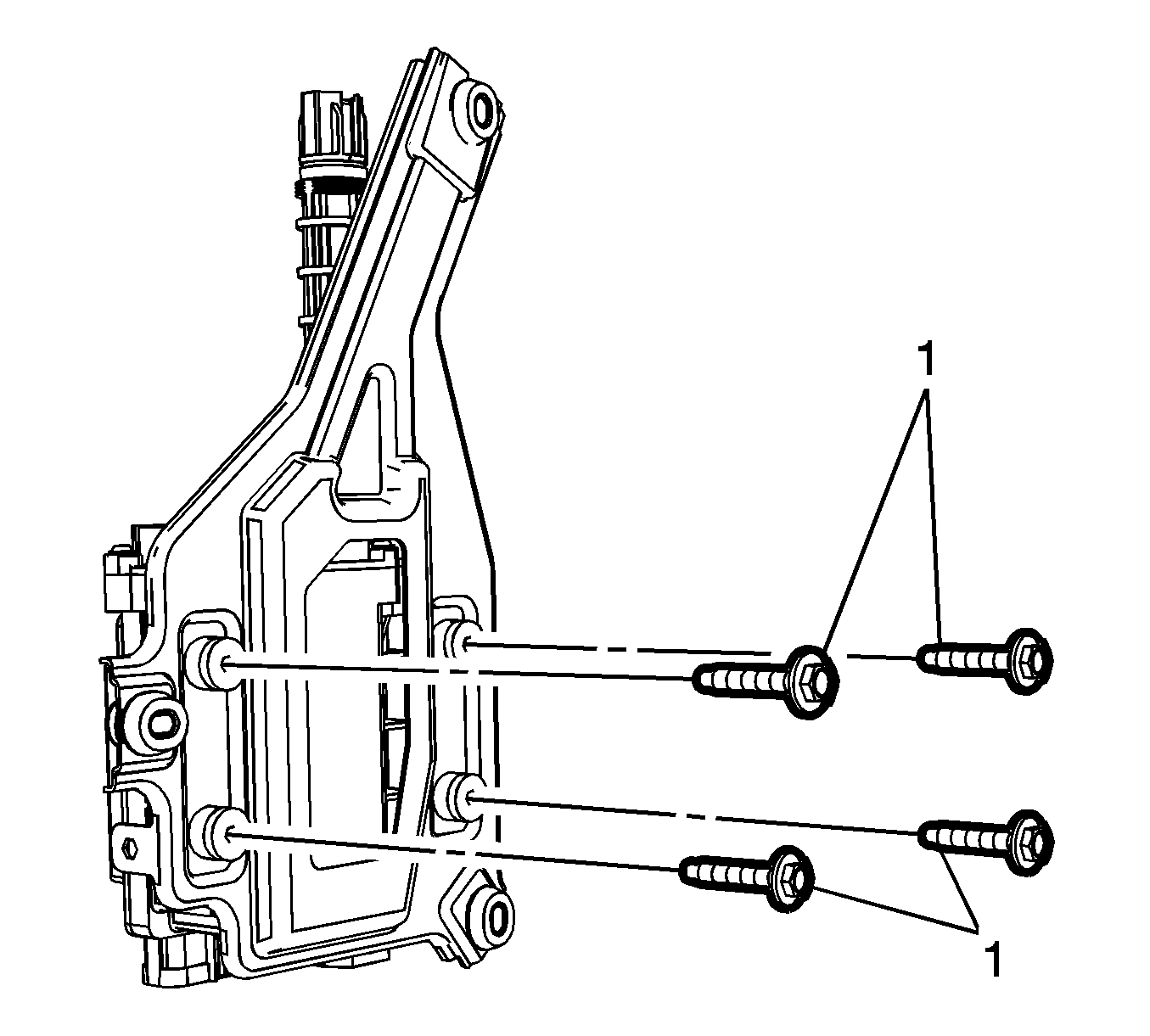

    2. Fig 2: Electronic Parking Brake Control Module Bolts
    GM2752682Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the electronic parking brake control module bolts (1) and tighten to 10 N.m (89 lb in).
  3. Install the electronic parking brake control module. Refer to Electronic Parking Brake Control Module Replacement .
