Rear Side Door Window Replacement

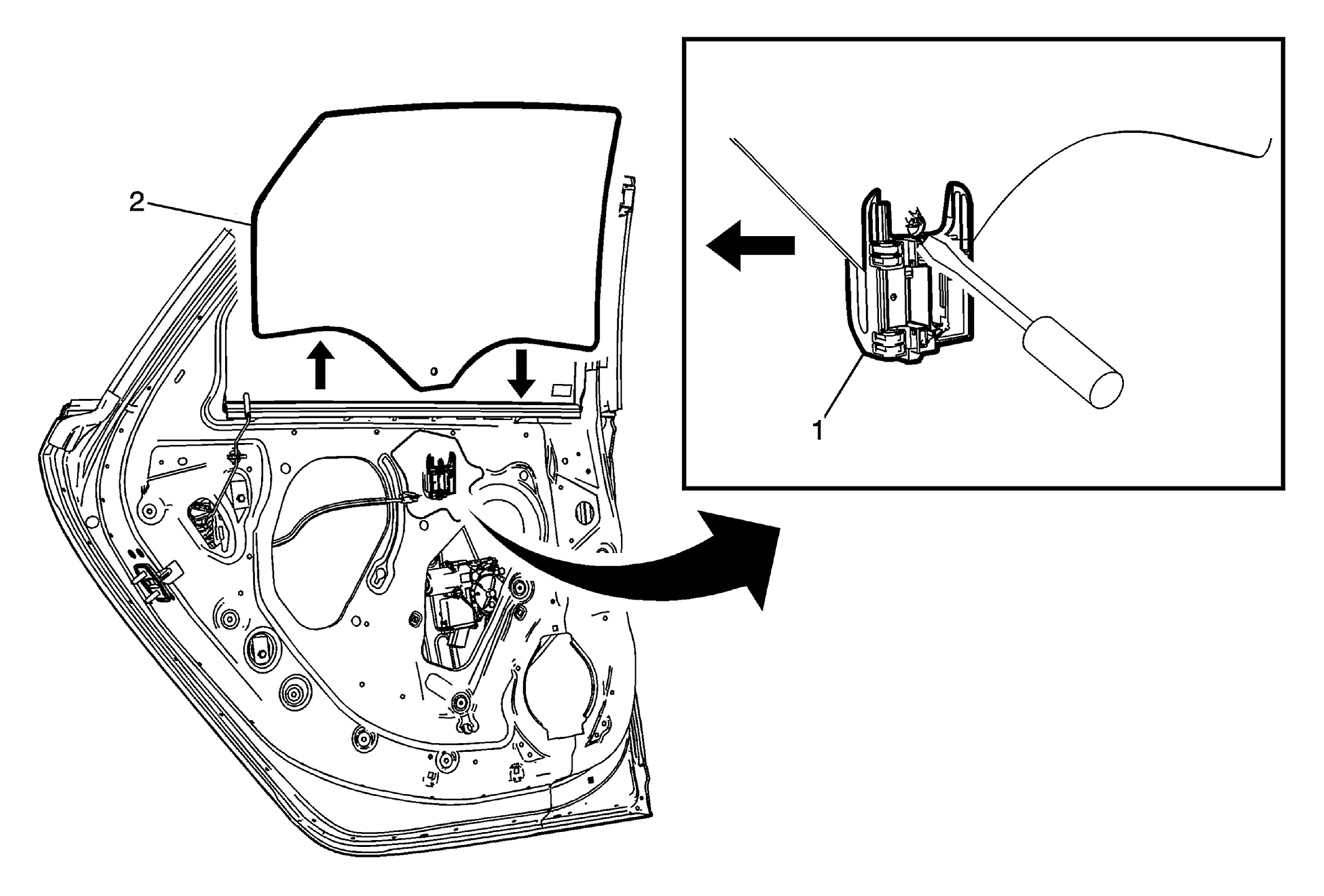

Fig 1: Rear Side Door Window & Guide Retainer Clip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement . Remove the rear side door inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement . Remove the rear side door window guide. Refer to Rear Side Door Window Rear Channel Replacement .
1	Rear Side Door Window Guide Retainer Clip Procedure Apply masking tape to the both appliques and frame. Position the window approximately half way down in the door. Remove the rear door water deflector. Use a suitable tool, push inward on the window guide retainer clip, lift upward on the window until it releases from the retaining clip. Tilt the window downward in the rear, pull up on the back of the window and pull it out from the frame.
2	Rear Side Door Window Procedure Place the window into the door frame, slide the window downward locking the retainers into the window retaining hole. NOTE: Inspect the window for proper operation before installing the trim panel.

Callout

Component Name

Preliminary Procedures

Remove the rear side door belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .
Remove the rear side door inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement .
Remove the rear side door window guide. Refer to Rear Side Door Window Rear Channel Replacement .

Rear Side Door Window Guide Retainer Clip

Procedure

Apply masking tape to the both appliques and frame.
Position the window approximately half way down in the door.
Remove the rear door water deflector.
Use a suitable tool, push inward on the window guide retainer clip, lift upward on the window until it releases from the retaining clip.
Tilt the window downward in the rear, pull up on the back of the window and pull it out from the frame.

Rear Side Door Window
Procedure
Place the window into the door frame, slide the window downward locking the retainers into the window retaining hole.

NOTE:

Inspect the window for proper operation before installing the trim panel.
