Rear Side Door Window Regulator Replacement

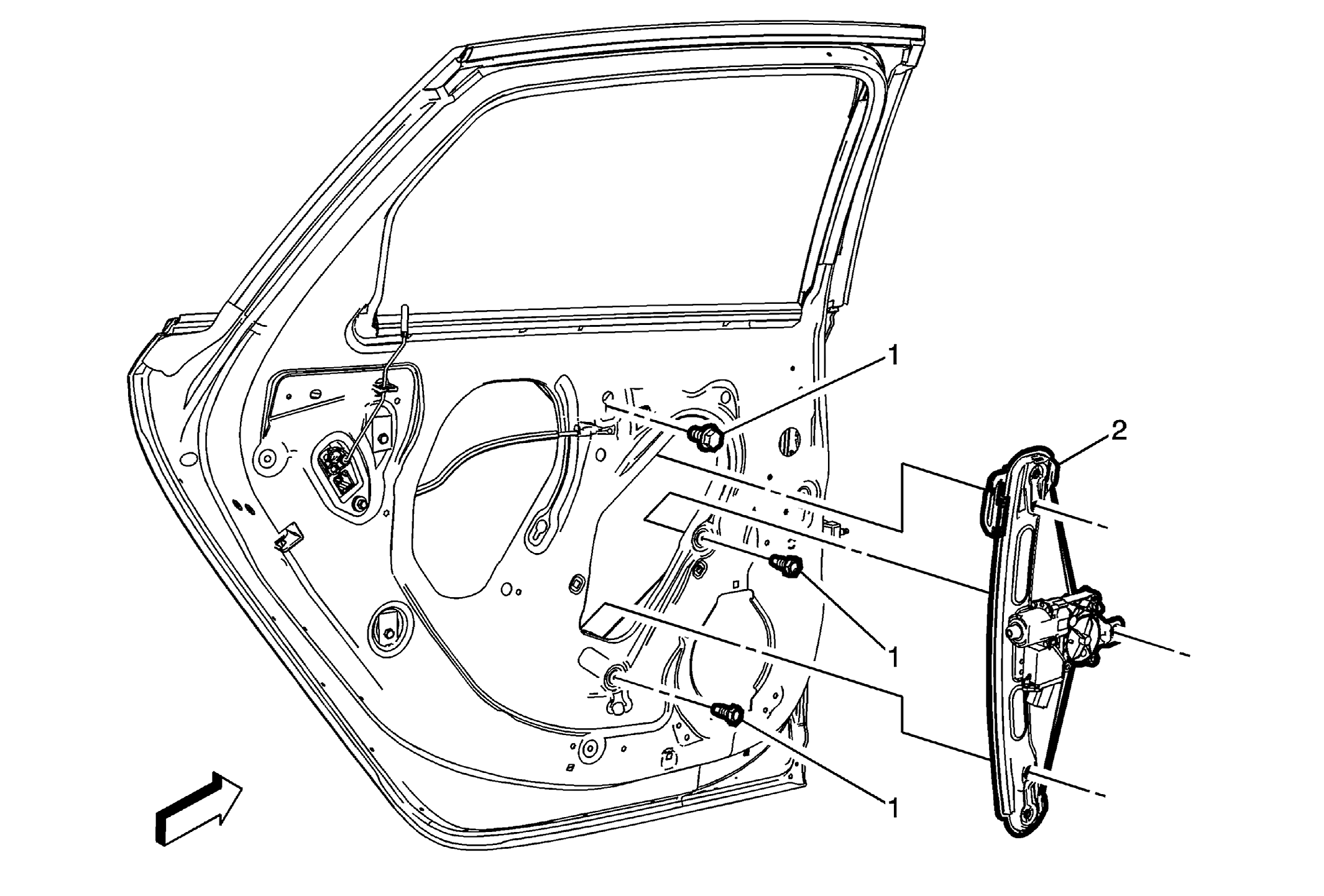

Fig 1: Rear Side Door Window Regulator & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Window Regulator Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Position the window approximately half way down in the door. Remove the rear door water deflector. Push inward on the window guide retainer clip, lift upward on the window until it releases the retaining clip. Use masking tape, tape the window to the upper door frame. Disconnect the rear side door window regulator electrical connector. Tighten 10 N.m (89 lb in)
2	Rear Side Door Window Regulator Procedures Transfer the power window motor. NOTE: Inspect the window for proper operation before installing the trim panel.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Window Regulator Bolt (Qty: 3)

CAUTION:

Procedure

Position the window approximately half way down in the door.
Remove the rear door water deflector.
Push inward on the window guide retainer clip, lift upward on the window until it releases the retaining clip.
Use masking tape, tape the window to the upper door frame.
Disconnect the rear side door window regulator electrical connector.

Tighten
10 N.m (89 lb in)

Rear Side Door Window Regulator
Procedures
Transfer the power window motor.

NOTE:

Inspect the window for proper operation before installing the trim panel.
