Rear Side Door Window Frame Front Applique Replacement

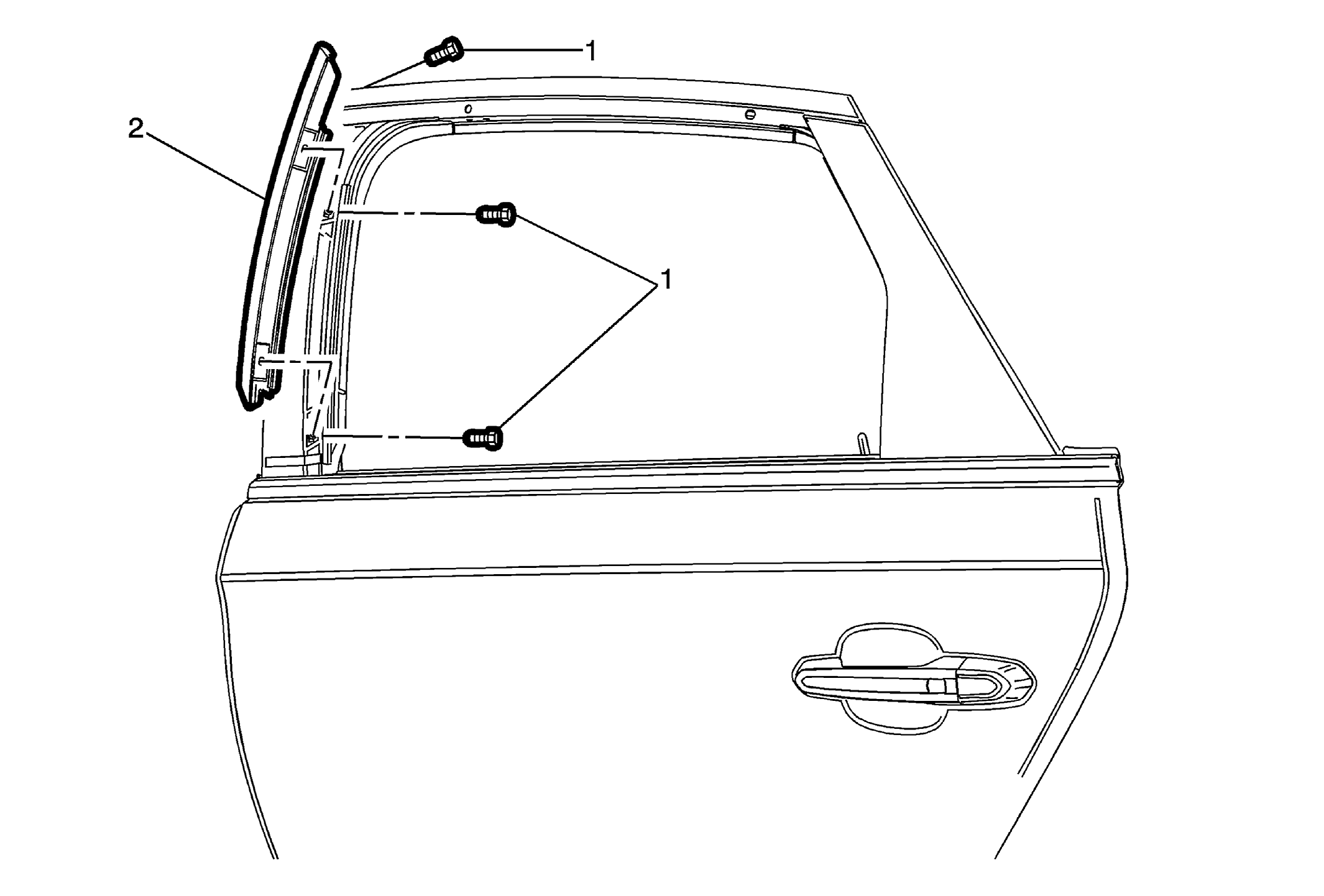

Fig 1: Rear Side Door Window Frame Front Applique & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .
1	Rear Side Door Window Frame Front Applique Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Place the window in the down position. Use a suitable tool, starting in the upper corner of the door frame pulling the weatherstrip partly out of the front side door frame to access the screws.
2	Rear Side Door Window Frame Front Applique Procedure Work the weatherstrip around the inner door frame, ensure that the weatherstrip is fully seated before operating the window. NOTE: Inspect the window for proper operation before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .

Rear Side Door Window Frame Front Applique Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure

Place the window in the down position.
Use a suitable tool, starting in the upper corner of the door frame pulling the weatherstrip partly out of the front side door frame to access the screws.

Rear Side Door Window Frame Front Applique
Procedure
Work the weatherstrip around the inner door frame, ensure that the weatherstrip is fully seated before operating the window.

NOTE:

Inspect the window for proper operation before installing the trim.
