Front Side Door Window Inner Sealing Strip Replacement

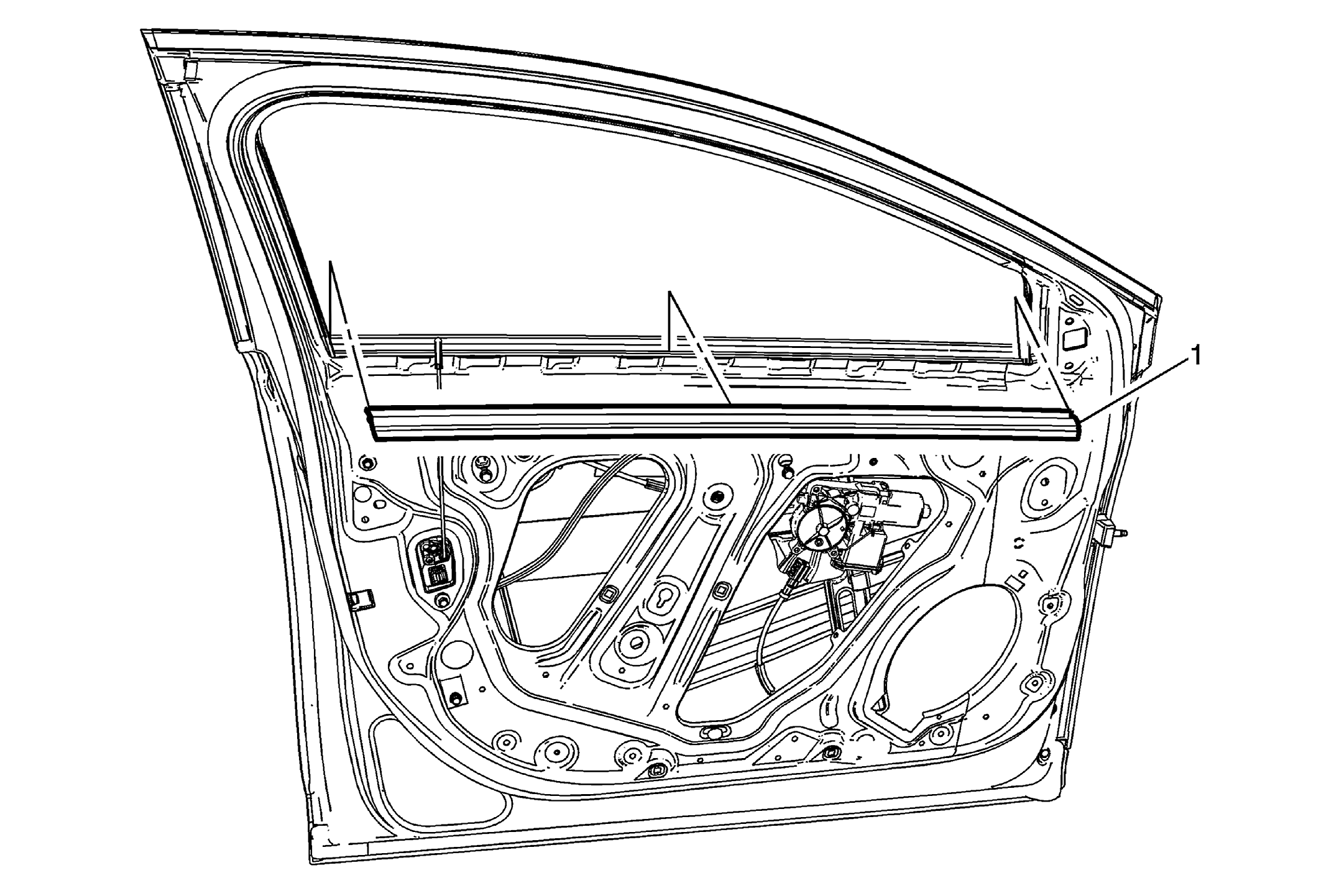

Fig 1: Front Side Door Window Inner Sealing Strip (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Front Side Door Inner Sealing Strip Procedure  Starting at the front edge of the sealing strip, pull rearward releasing it from the pinchweld flange.
