Inside Rearview Mirror Replacement

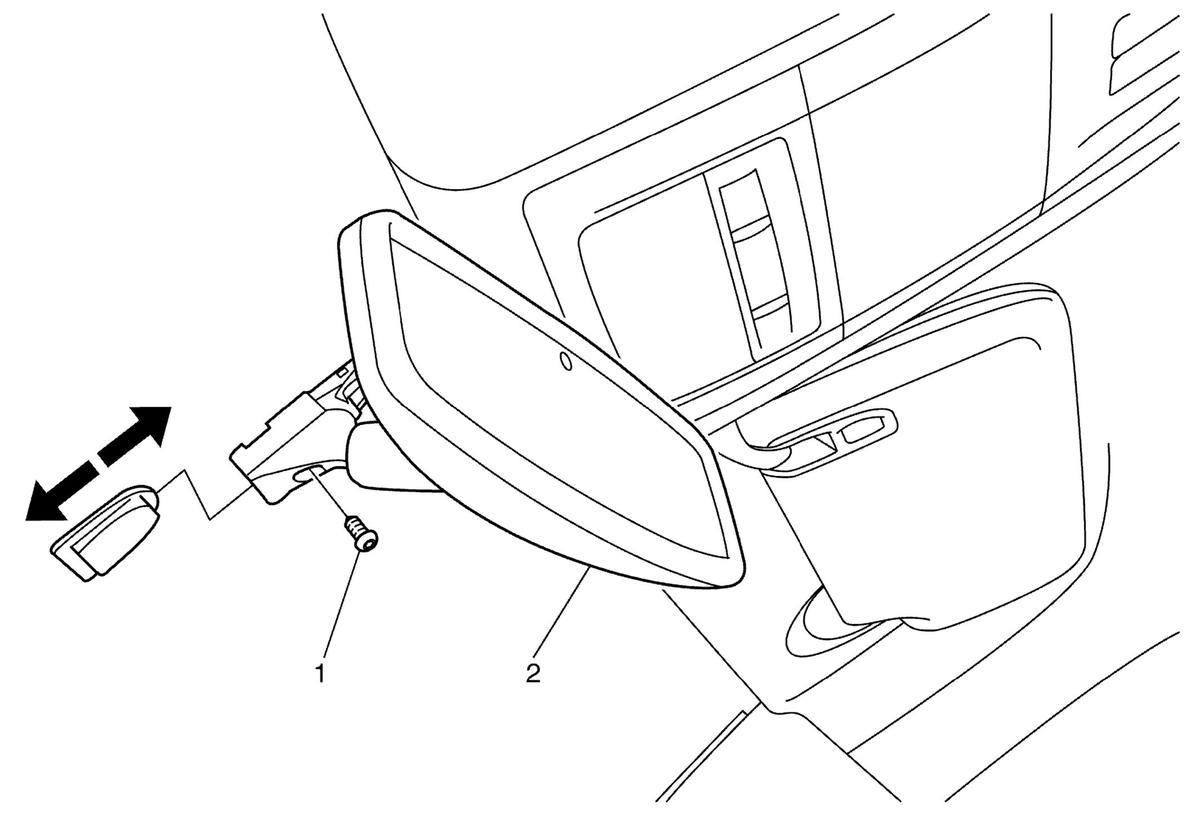

Fig 1: Inside Rearview Mirror & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Procedure Remove the inside rearview mirror cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement , and Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement . Disconnect the electrical connector. Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Tighten 2 N.m (18 lb in)
2	Inside Rearview Mirror Procedure Slide the mirror upward off of the rearview mirror button.

Callout

Component Name

Inside Rearview Mirror Screw

CAUTION:

Procedure

Remove the inside rearview mirror cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement , and Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement .
Disconnect the electrical connector.
Adjust the mirror to the full upward position.
Loosen the set screw located at the base of the mirror.

Tighten
2 N.m (18 lb in)

Inside Rearview Mirror
Procedure
Slide the mirror upward off of the rearview mirror button.
