Radio Control Assembly Replacement

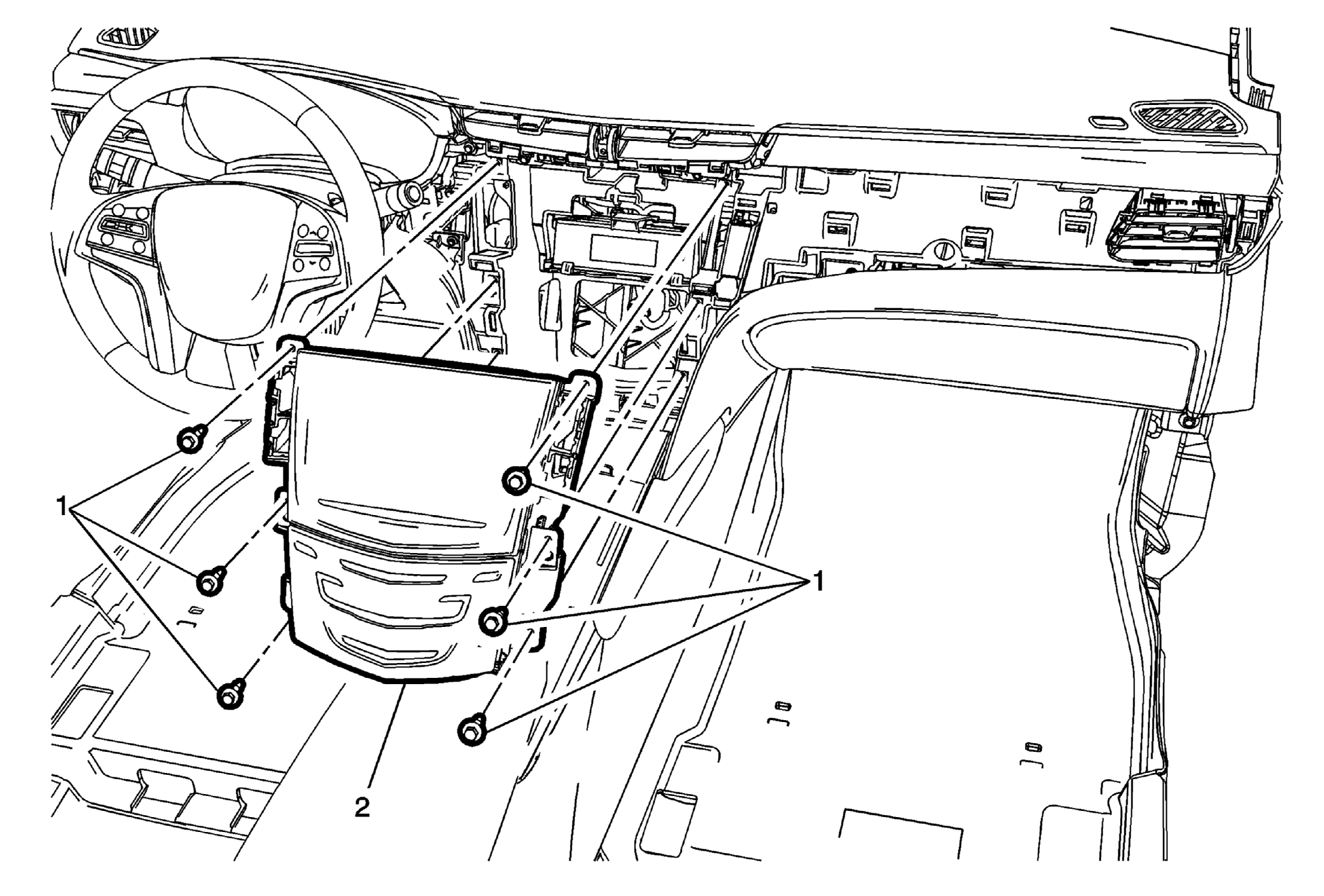

Fig 1: Radio Control Assembly & Fasteners
GM2756924Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel - center. Refer to Instrument Panel Trim Panel Replacement - Center
  2. Remove the instrument panel - right side. Refer to Instrument Panel Trim Panel Replacement - Right Side .
  3. Remove the accessory switch. Refer to Accessory Switch Replacement .
  4. Remove the hazard warning switch. Refer to Hazard Warning Switch Replacement .
1 Radio Control Fasteners (Qty: 6)
CAUTION:

Refer to Fastener Caution .
2 Radio Control Assembly

Procedure

  1. Disconnect the electrical connections.
  2. When replacing the radio control assembly, transfer all necessary components.
  3. Refer to Control Module References for programming and setup information.
