Radio Replacement

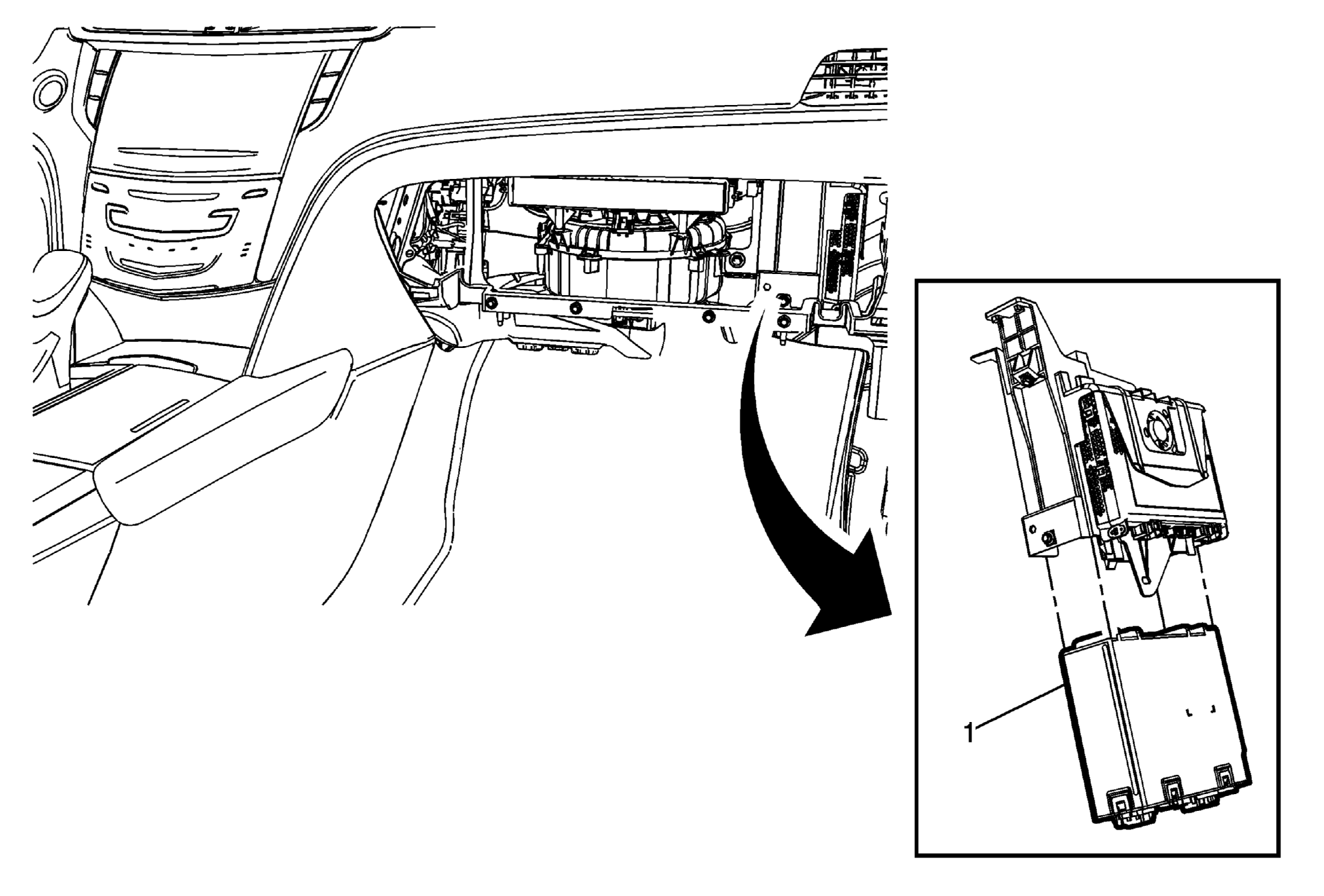

Fig 1: Radio
GM2758029Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel lower airbag. Refer to Instrument Panel Lower Airbag Replacement (Driver Side)Instrument Panel Lower Airbag Replacement (Passenger Side)
  2. Reposition the front floor panel carpet - right side. Refer to Front Floor Panel Carpet Replacement - Right Side .
1 Radio

Procedure

  1. Disconnect the electrical connections.
  2. Slide module downward to release from bracket.
  3. Refer to Control Module References for programming and setup information.
