Front Parking Sensors and Advanced Parking Assist (UD5/UFQ)

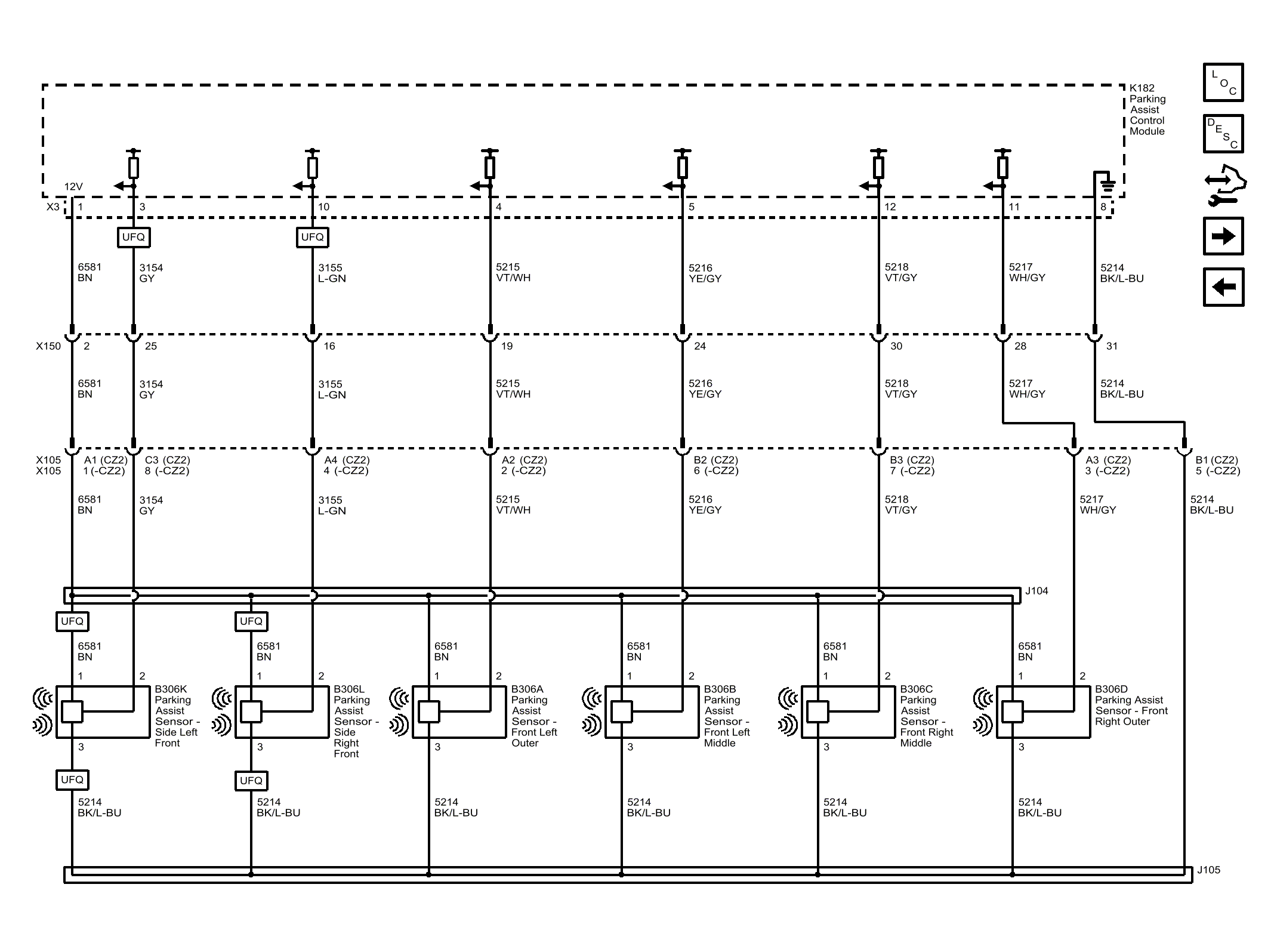

Fig 1: Front Parking Sensors and Advanced Parking Assist (UD5/UFQ)

GM4454590

Courtesy of GENERAL MOTORS COMPANY
