Forward Collision Alert Display Replacement

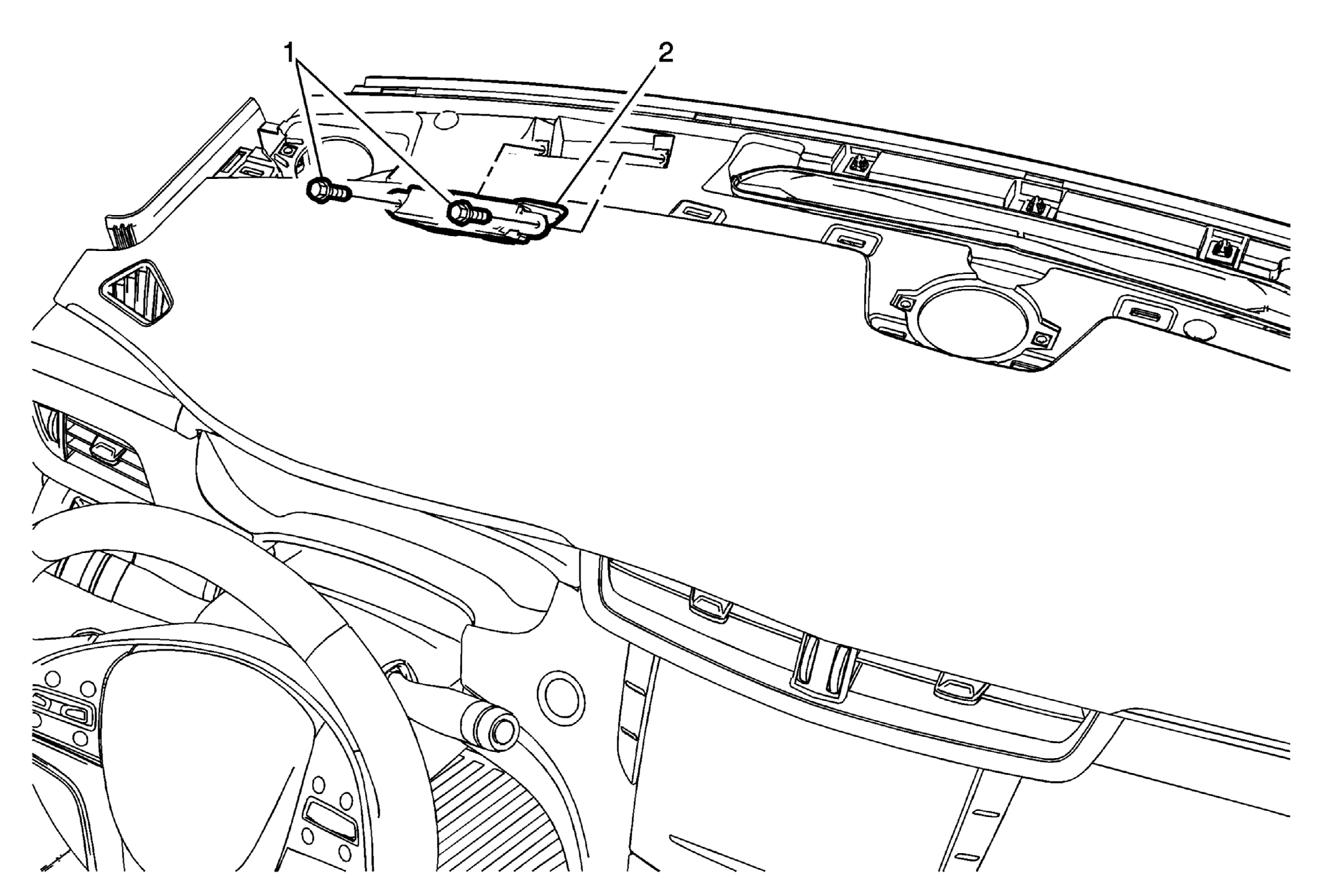

Fig 1: Forward Collision Alert Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement .
1	Forward Collision Alert Display (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Forward Collision Alert Display Procedure  Disconnect the electrical connector.
