Comprehensive Safety Serial Data (UGN/UVZ)

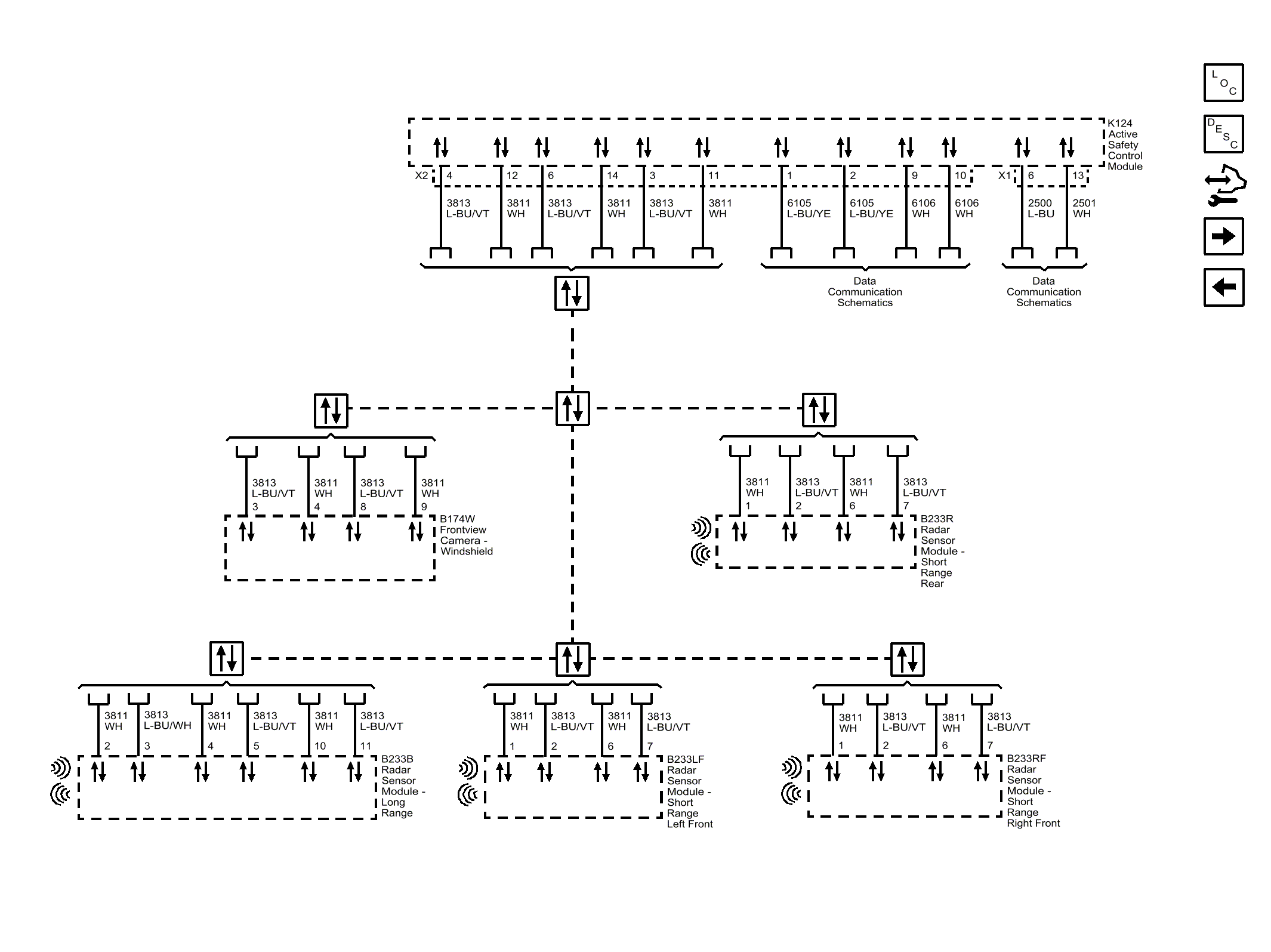

Fig 1: Comprehensive Safety Serial Data (UGN/UVZ)

GM4454611

Courtesy of GENERAL MOTORS COMPANY
