Front View Driver Information Camera Replacement (Platinum)

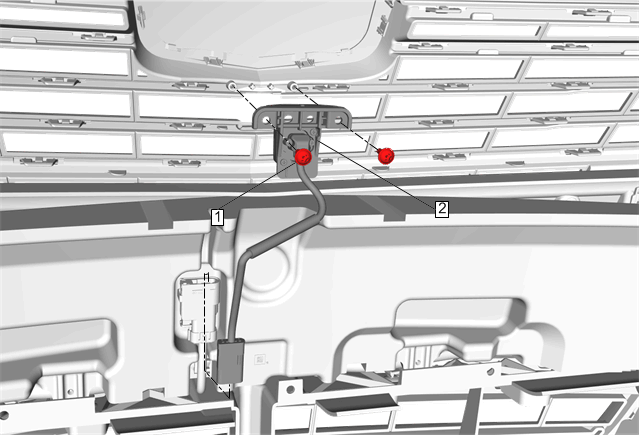

Fig 1: Front View Driver Information Camera (Platinum)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Front Grille Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  0.25 N.m (0.18 lb in)
2	Front View Driver Information Camera Procedure  Disconnect the electrical connector.
