Bar Code

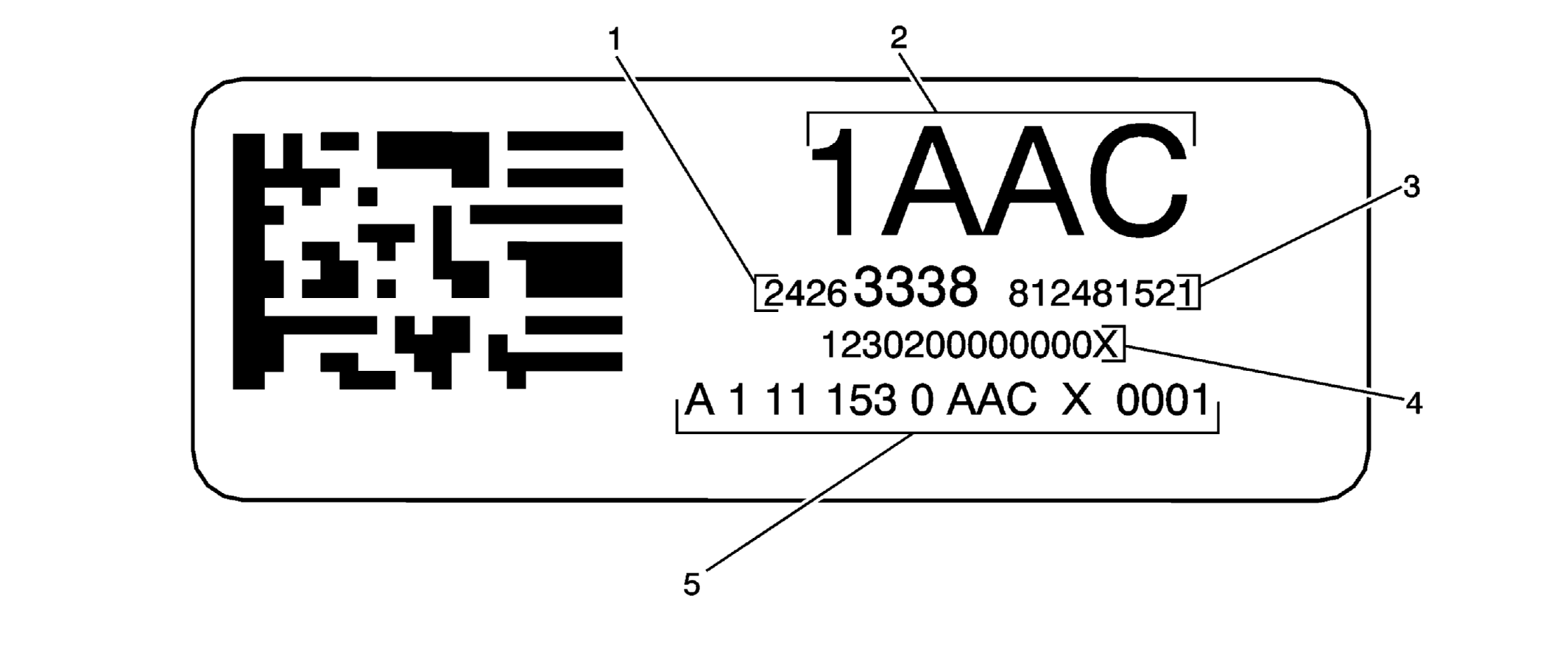

Fig 1: Bar Code Information Identification
GM2909775Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 GM Full Part Number
2 Broadcast Code
3 Supplier DUNs
4 VPPS Code
5 Supplier Trace Code
