X51A Fuse Block - Instrument Panel Label

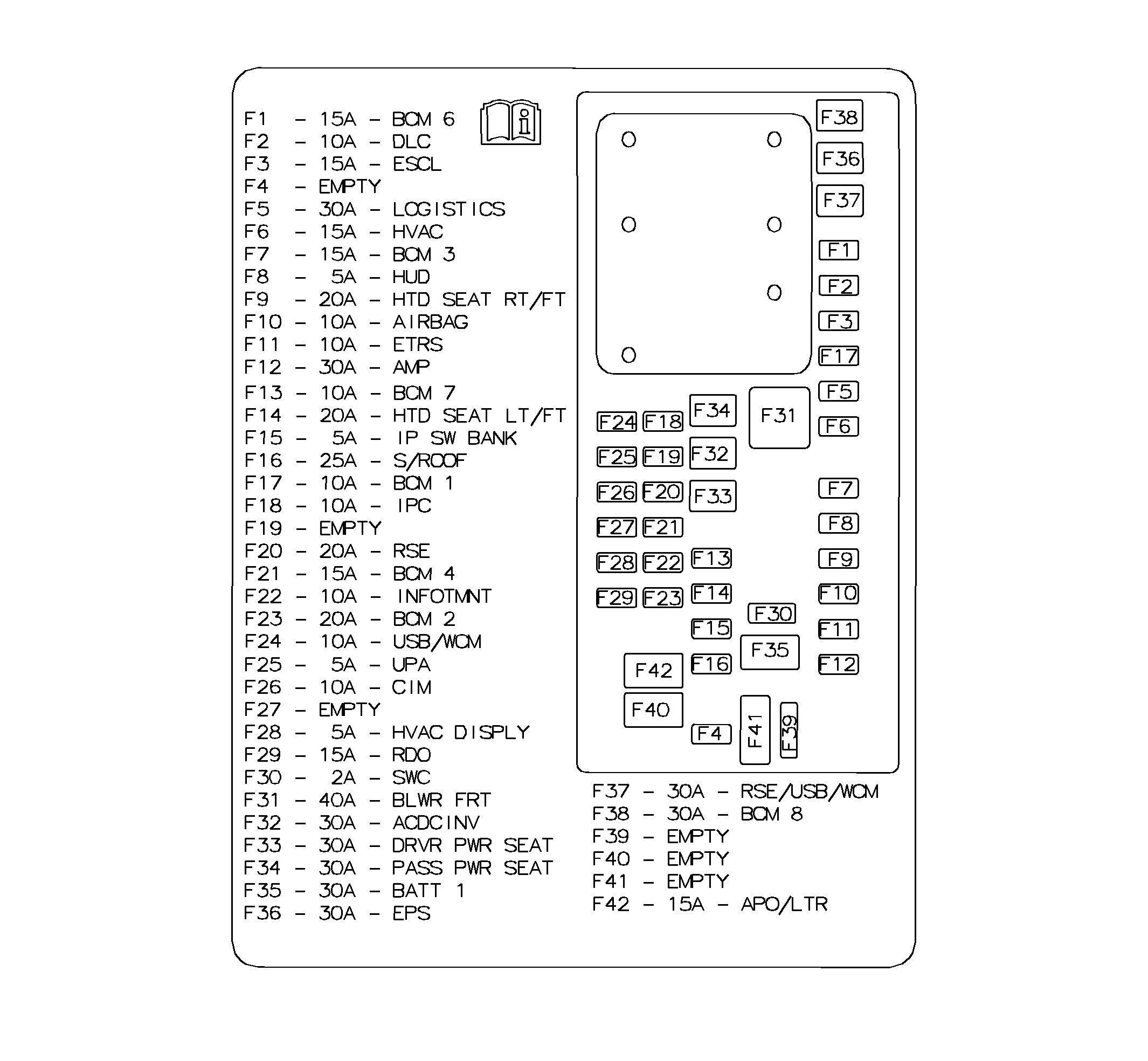

Fig 1: X51A Fuse Block - Instrument Panel Label

GM4260435

Courtesy of GENERAL MOTORS COMPANY
