Installation Procedure

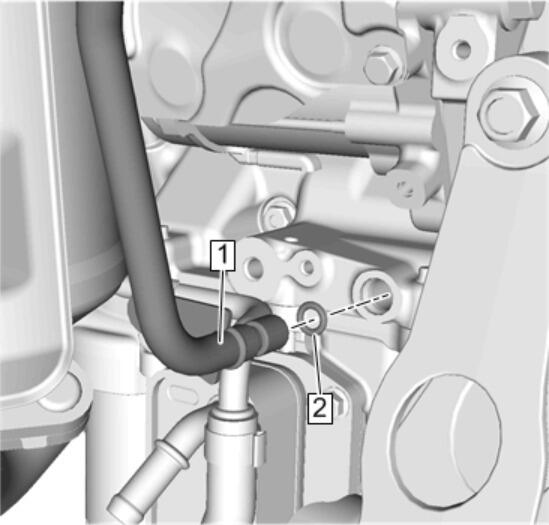

    Fig 1: Vacuum Pump Pipe And Seal
    GM4321202Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW Vacuum Pump Pipe Seal (2).
  2. Install Vacuum Pump Pipe (1)

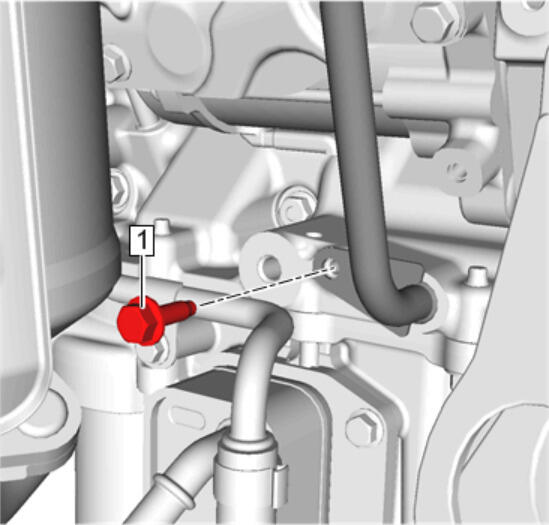

    3. Fig 2: Vacuum Pump Pipe Bolt
    GM4321191Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install and tighten Vacuum Pump Pipe Bolt (2) to 10 N.m (89 lb in)
  4. {If equipped} Install Engine Oil Cooler. Refer to Engine Oil Cooler Replacement (LGX)

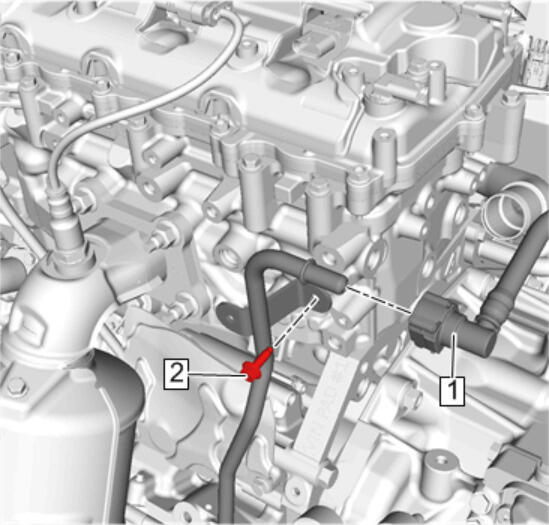

    5. Fig 3: Vacuum Pump Pipe And Bolt
    GM4321188Courtesy of GENERAL MOTORS COMPANY
  5. Install and tighten Vacuum Pump Pipe Bolt (2) to 10 N.m (89 lb in)
  6. Connect Power Brake Booster Vacuum Hose (1). Refer to Power Brake Booster Vacuum Hose Replacement
