Knock Sensor Replacement - Bank 2

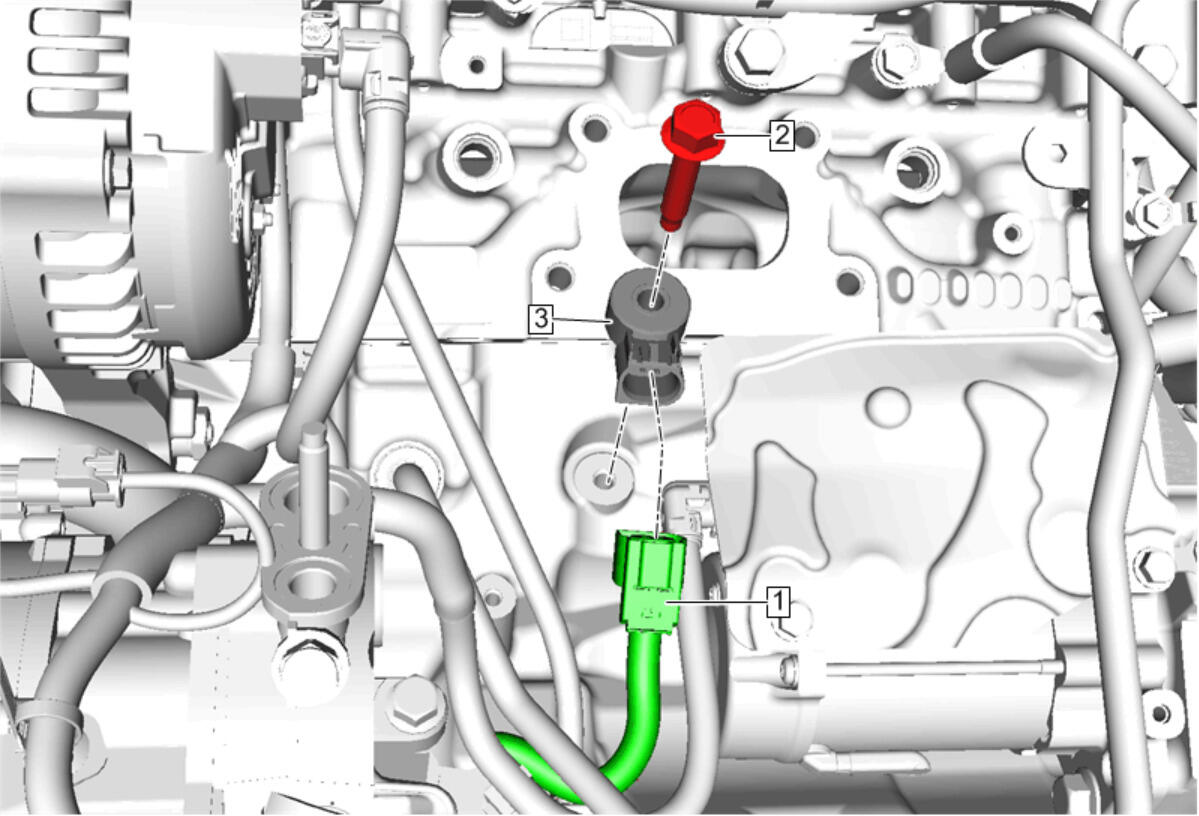

Fig 1: Knock Sensor - Bank 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Warm Up Three-Way Catalytic Converter - Bank 2. Refer to Warm Up Three-Way Catalytic Converter Replacement (Bank 2, LGX)
1	Electrical Connector
2	Knock Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
3	Knock Sensor
