Knock Sensor Replacement - Bank 1

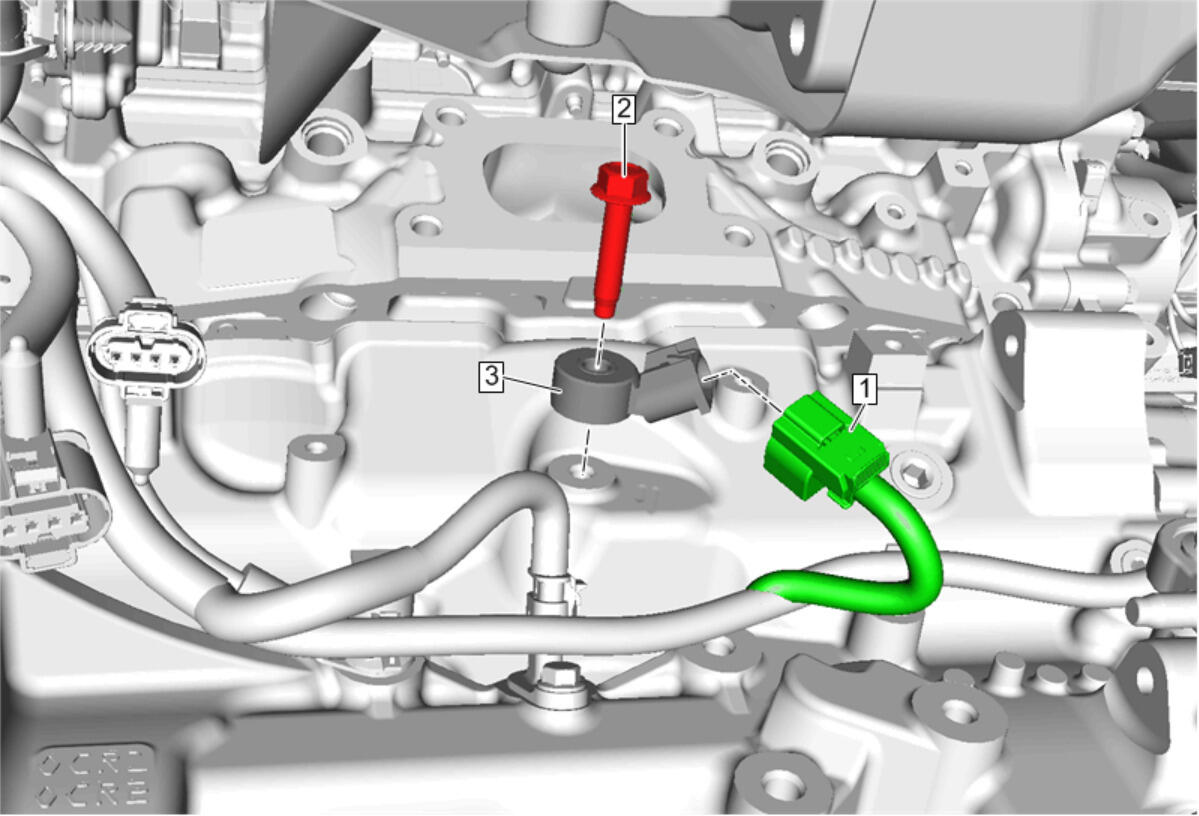

Fig 1: Knock Sensor - Bank 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Knock Sensor Shield. Refer to Knock Sensor Shield Replacement (AWD) Knock Sensor Shield Replacement (FWD)
1	Electrical Connector
2	Knock Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
3	Knock Sensor
