Intake Air Duct Replacement

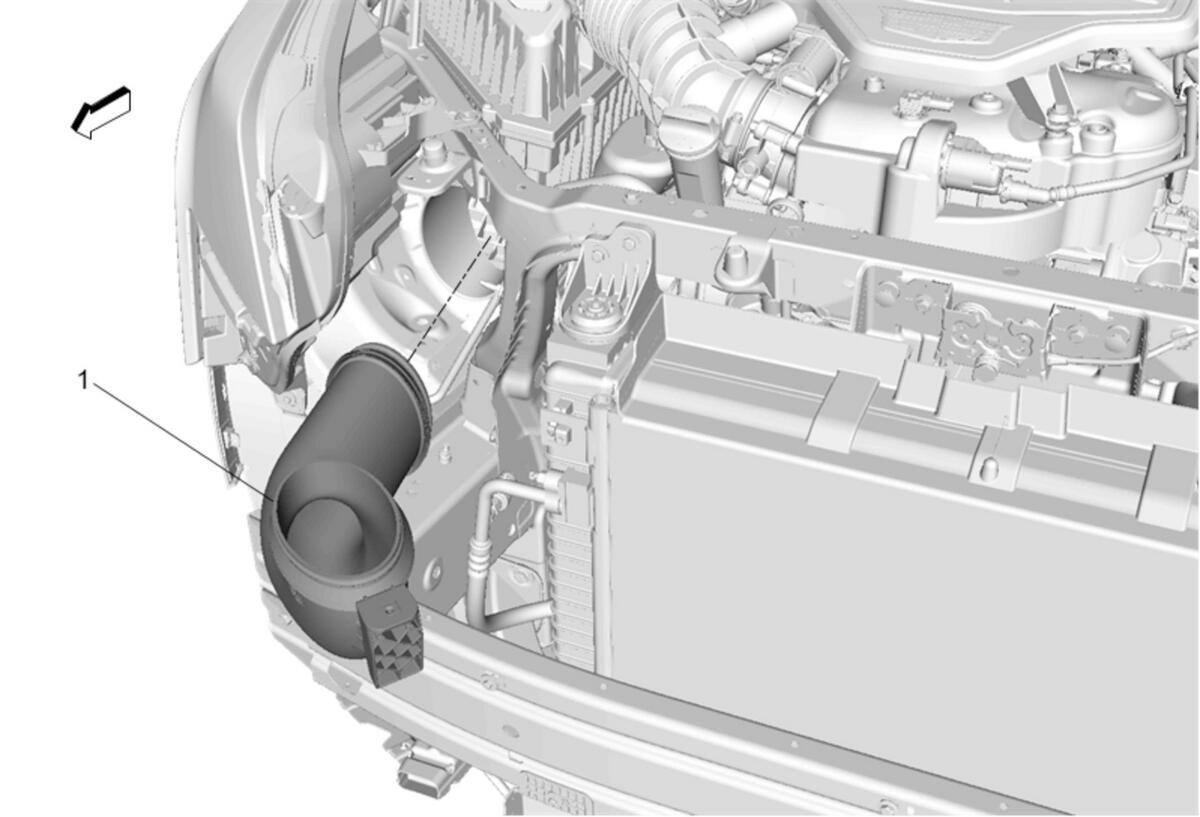

Fig 1: Intake Air Duct
GM4316115Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Intake Air Splash Shield. Refer to Intake Air Splash Shield Replacement
1 Intake Air Duct
Procedure
Pull intake air duct froward to release from air cleaner assembly.
