Installation Procedure

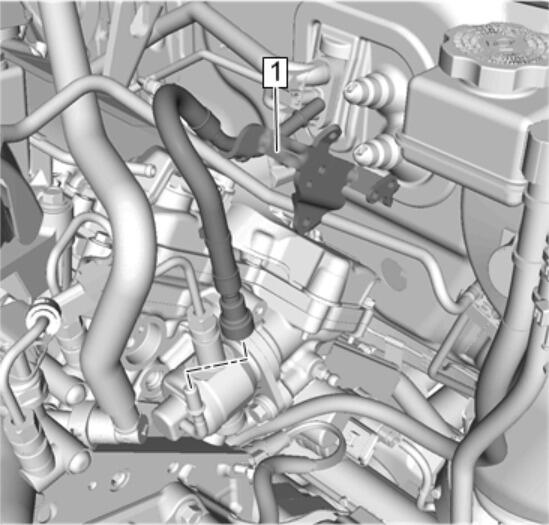

    Fig 1: Fuel Feed Pipe
    GM4320359Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the high pressure fuel pipe, and fuel pump fittings are clean and dry prior to assembly.

  1. Install Fuel Feed Pipe (1)

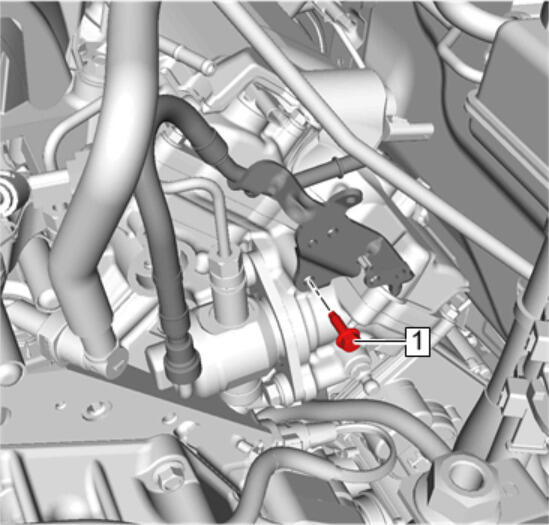

    2. Fig 2: Fuel Feed Front Pipe Bracket Bolt
    GM4320343Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Fuel Feed Front Pipe Bracket Bolt (1) to 10 N.m (89 lb in)

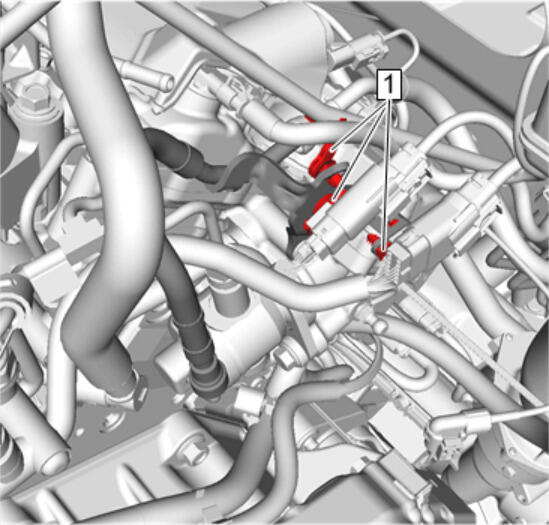

    3. Fig 3: Wiring Harness Retainers
    GM4320175Courtesy of GENERAL MOTORS COMPANY
  3. Install Wiring Harness Retainers (1) (Qty: 3)
  4. Install Engine Rear Noise Shield. Refer to Engine Rear Noise Shield Replacement  - Install

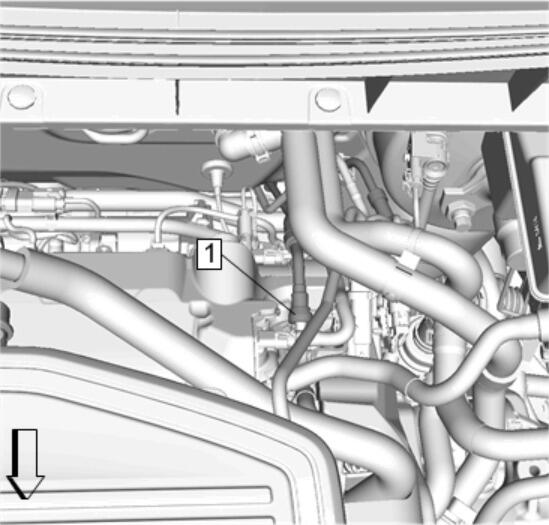

    5. Fig 4: Fuel Feed Pipe
    GM4316685Courtesy of GENERAL MOTORS COMPANY
  5. Connect Fuel Feed Pipe (1). Refer to Fuel Feed Pipe Replacement (At Engine)
  6. Pressurize the fuel system and inspect for leaks.
