Crankshaft Position Sensor Replacement (AWD)

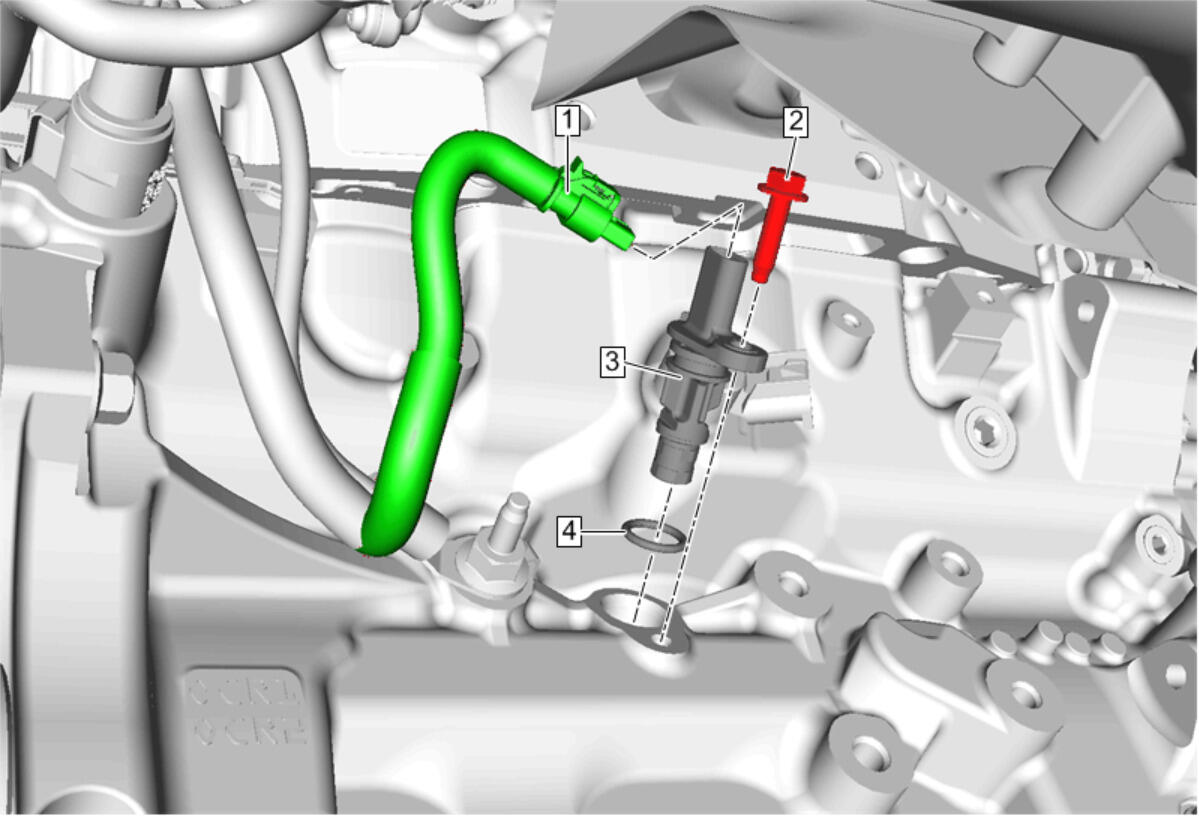

Fig 1: Crankshaft Position Sensor (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Power Transfer Unit Case. Refer to Power Transfer Unit Case Replacement
1	Electrical Connector Procedure Disconnect the electrical connector.
2	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Crankshaft Position Sensor
4	Crankshaft Position Sensor Seal Procedure Install a NEW seal. Lubricate the NEW seal with clean engine oil.
