Outside Rearview Mirror Replacement

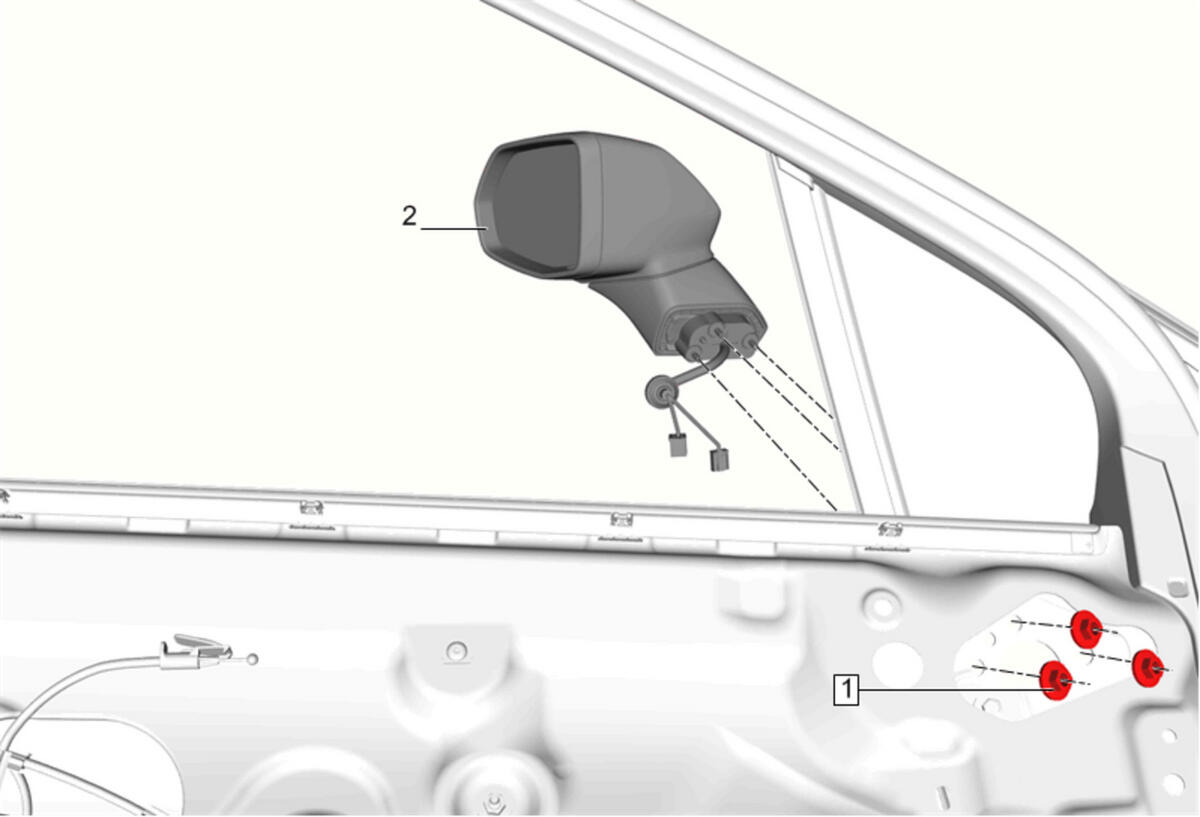

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning Preliminary Procedures Front Side Door Water Deflector Replacement Disconnect the electrical connector.
1	Outside Rearview Mirror Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror NOTE: Inspect the mirror for proper operation before installing the door trim.
