Inside Rearview Mirror Replacement

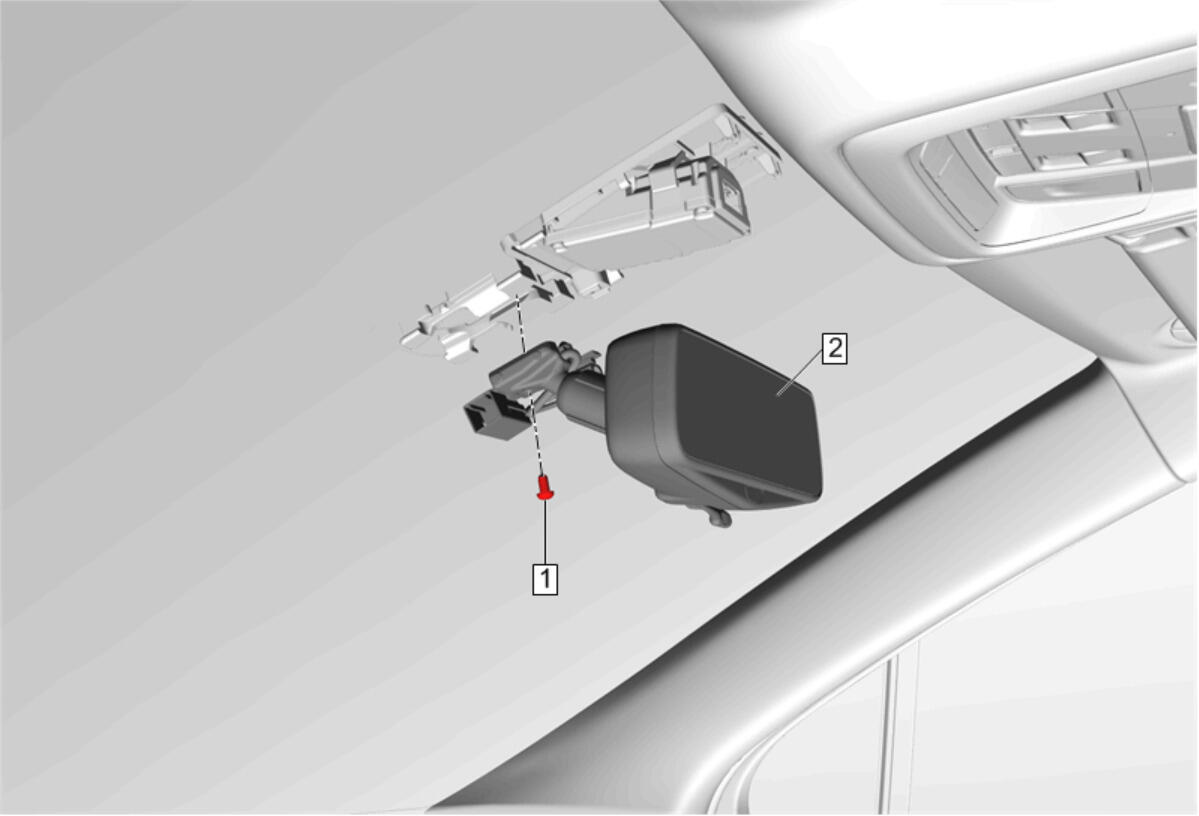

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UEU)Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UEU)
1	Inside Rearview Mirror Set Bolt CAUTION: Refer to Fastener Caution . Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror Procedure Loosen the set screw located at the base of the mirror. Slide the mirror off the rearview mirror button. Disconnect the electrical connector.

Callout

Component Name

Inside Rearview Mirror Set Bolt

CAUTION:

Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror

Procedure
