Collision Alert Indicators and Safety Seat (UEU)

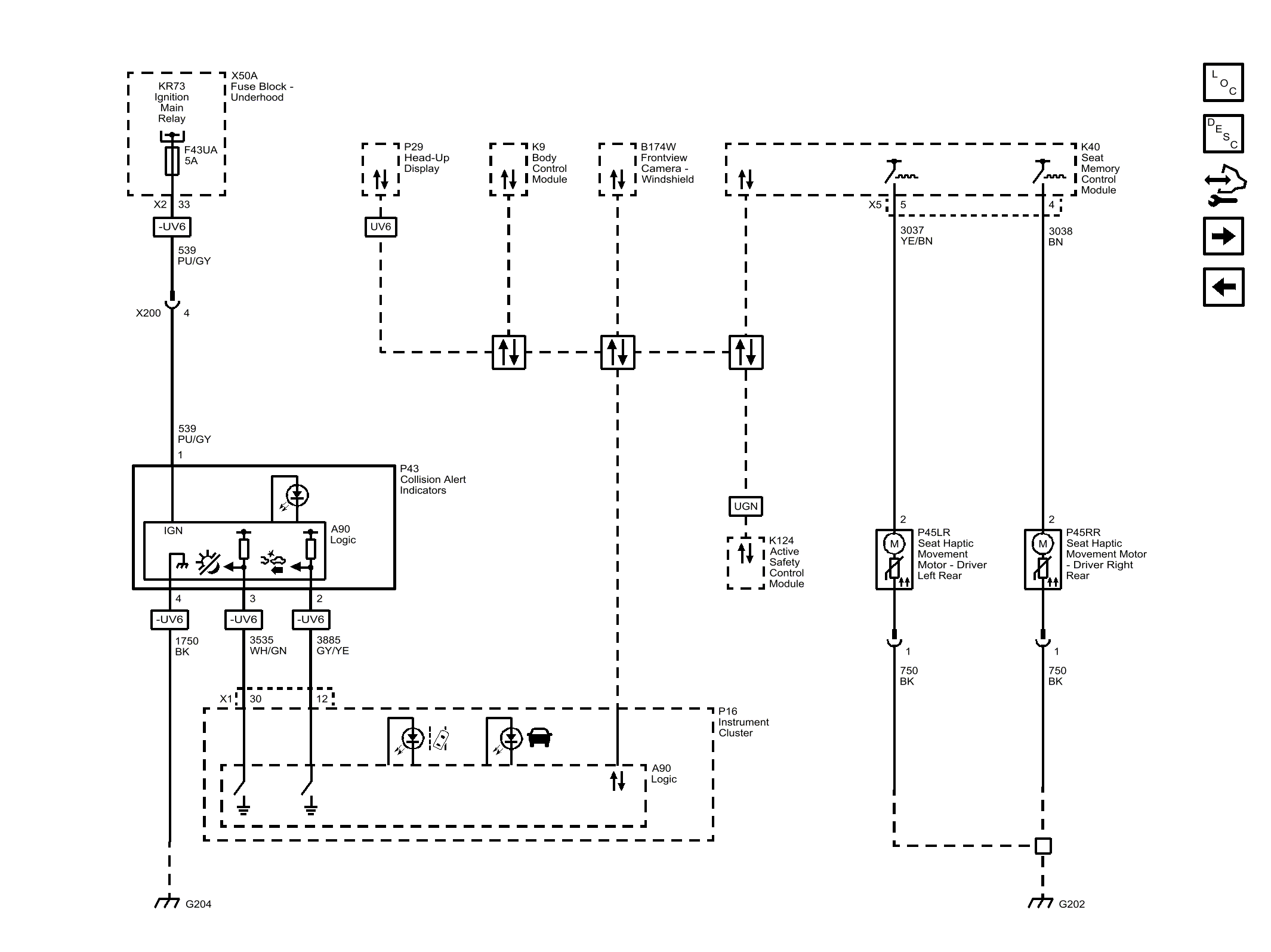

Fig 1: Collision Alert Indicators and Safety Seat (UEU)

GM4304862

Courtesy of GENERAL MOTORS COMPANY
