360 Degree Vision - Module Power, Ground, Serial Data, and Camera Signals (UVH)

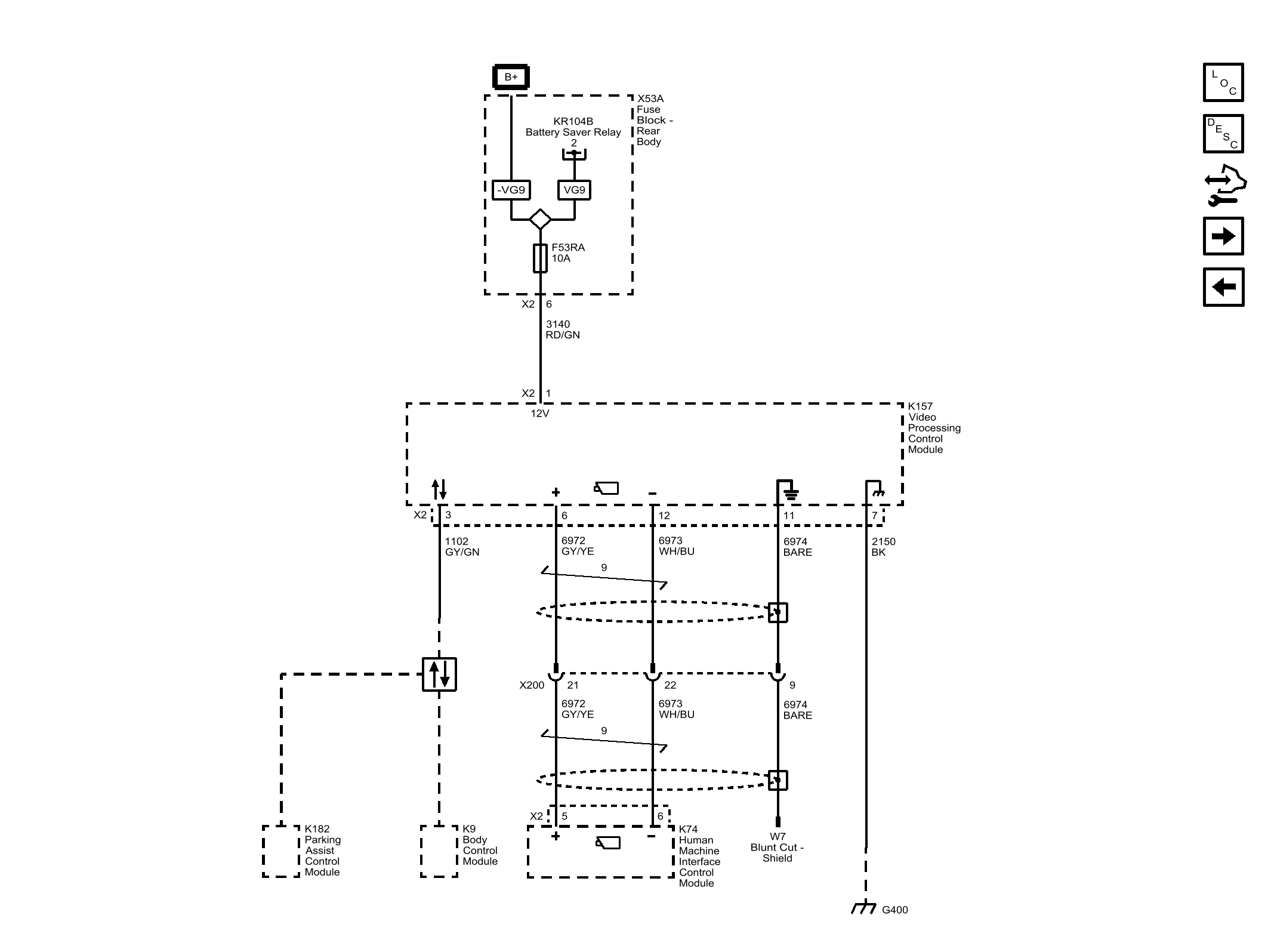

Fig 1: 360 Degree Vision - Module Power, Ground, Serial Data, and Camera Signals (UVH)
GM4306158Courtesy of GENERAL MOTORS COMPANY
