Side View Driver Information Camera Replacement

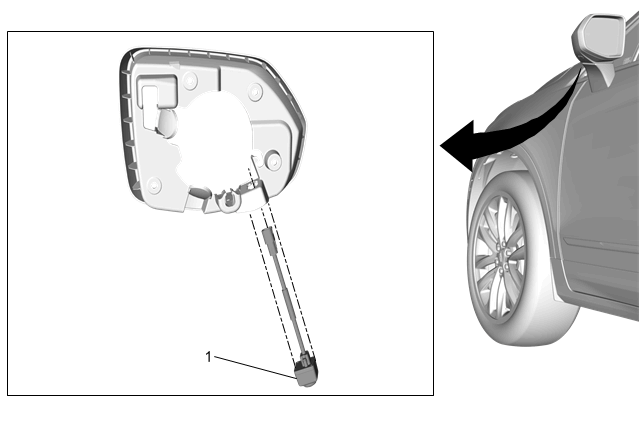

Fig 1: Side View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Outside Rearview Mirror Housing Bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement
1	Side View Driver Information Camera Procedure Disconnect the electrical connector: Push the camera out through the bottom of the outside rearview mirror housing bezel

Callout

Component Name

Preliminary Procedure
Remove Outside Rearview Mirror Housing Bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement

Side View Driver Information Camera

Procedure

Disconnect the electrical connector:
Push the camera out through the bottom of the outside rearview mirror housing bezel
