Rearview Driver Information Camera Replacement (With DRZ)

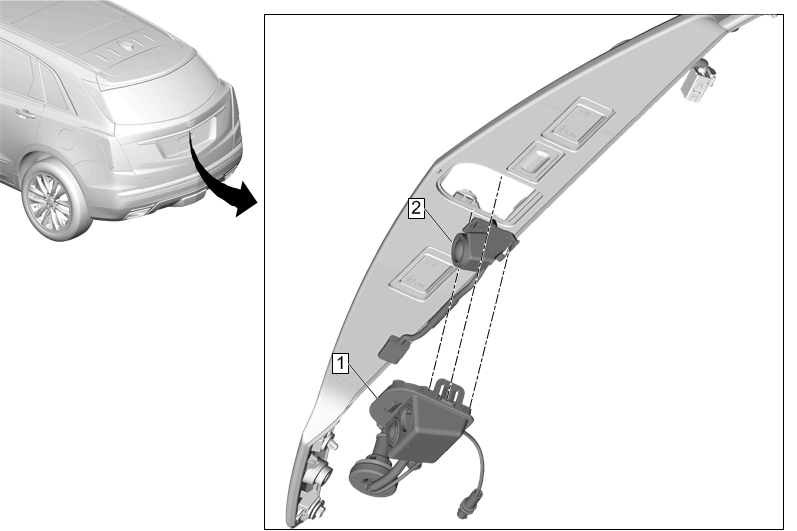

Fig 1: Rearview Driver Information Camera (With DRZ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Closure Center with License Plate Applique. Refer to Rear Closure Center with License Plate Applique Replacement
1	Rearview Driver Information Camera Procedure Disconnect all electrical connectors. Disconnect the washer hose and grommet. Release the retaining tabs.
2	Rearview Driver Information Camera Procedure Use a small flat bladed tool to remove the camera.

Callout

Component Name

Preliminary Procedure
Remove Rear Closure Center with License Plate Applique. Refer to Rear Closure Center with License Plate Applique Replacement

Rearview Driver Information Camera

Procedure

Rearview Driver Information Camera
Procedure
Use a small flat bladed tool to remove the camera.
