K28 Headlamp Leveling Control Module X1 (TR7)

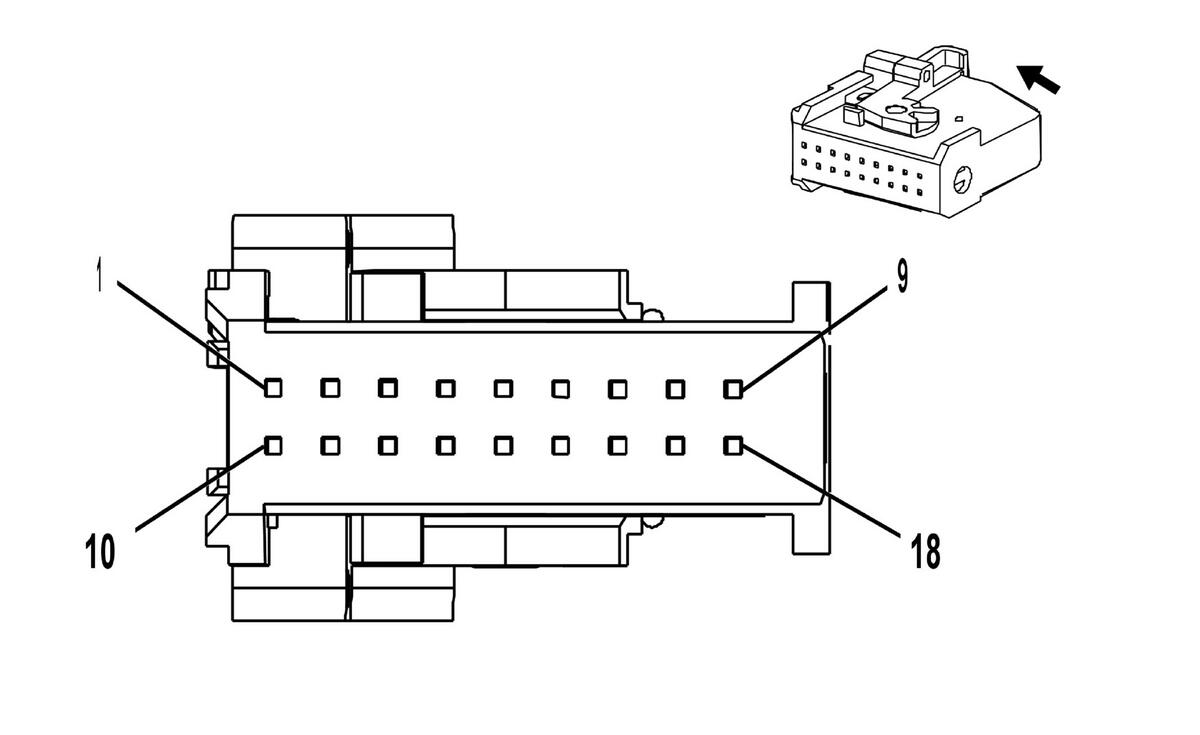

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575584	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	13575859	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	BK	750	Ground	II	-
2	0.5	WH/RD	2165	Automatic Level Control Position Sensor 5V Reference	I	-
3	0.5	BN	2184	Automatic Level Control Position Sensor Signal	I	-
4	0.35	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	-
5	0.35	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	-
6	0.5	BK/BN	2185	Automatic Level Control Position Sensor Low Reference	I	-
7	0.35	WH/BU	5986	Serial Data Communication Enable	I	-
8 - 9	-	-	-	Not Occupied	-	-
10	0.75	RD/BN	1140	Battery Positive Voltage	II	-
11	0.5	WH/RD	7524	Front Axle Level Sensor 5V Reference	I	-
12	0.5	BN/WH	7525	Front Axle Level Sensor Signal	I	-
13	0.35	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	-
14	0.35	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	-
15	0.5	BK/GY	7526	Front Axle Level Sensor Low Reference	I	-
16	-	-	-	Not Occupied	-	-
17	0.5	GN/WH	7530	Local Interconnect Network Serial Data Bus 8	I	-
18	0.5	GN/BN	7529	Local Interconnect Network Serial Data Bus 7	I	-
