K68 Trailer Lighting Control Module X2 (U4G)
|
|

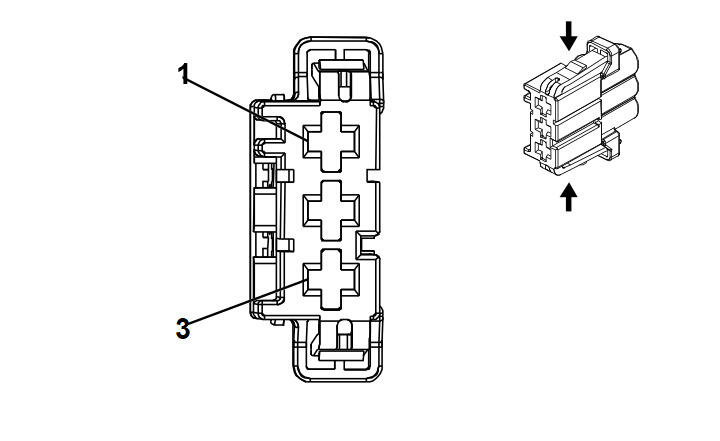

Connector Part Information
- Harness Type: Body
- OEM Connector: 13227253
- Service Connector: 13314094
- Description: 3-Way F 2.8 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BK |
1250 |
Ground |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
2.5 |
RD/GN |
742 |
Battery Positive Voltage |
I |
- |
