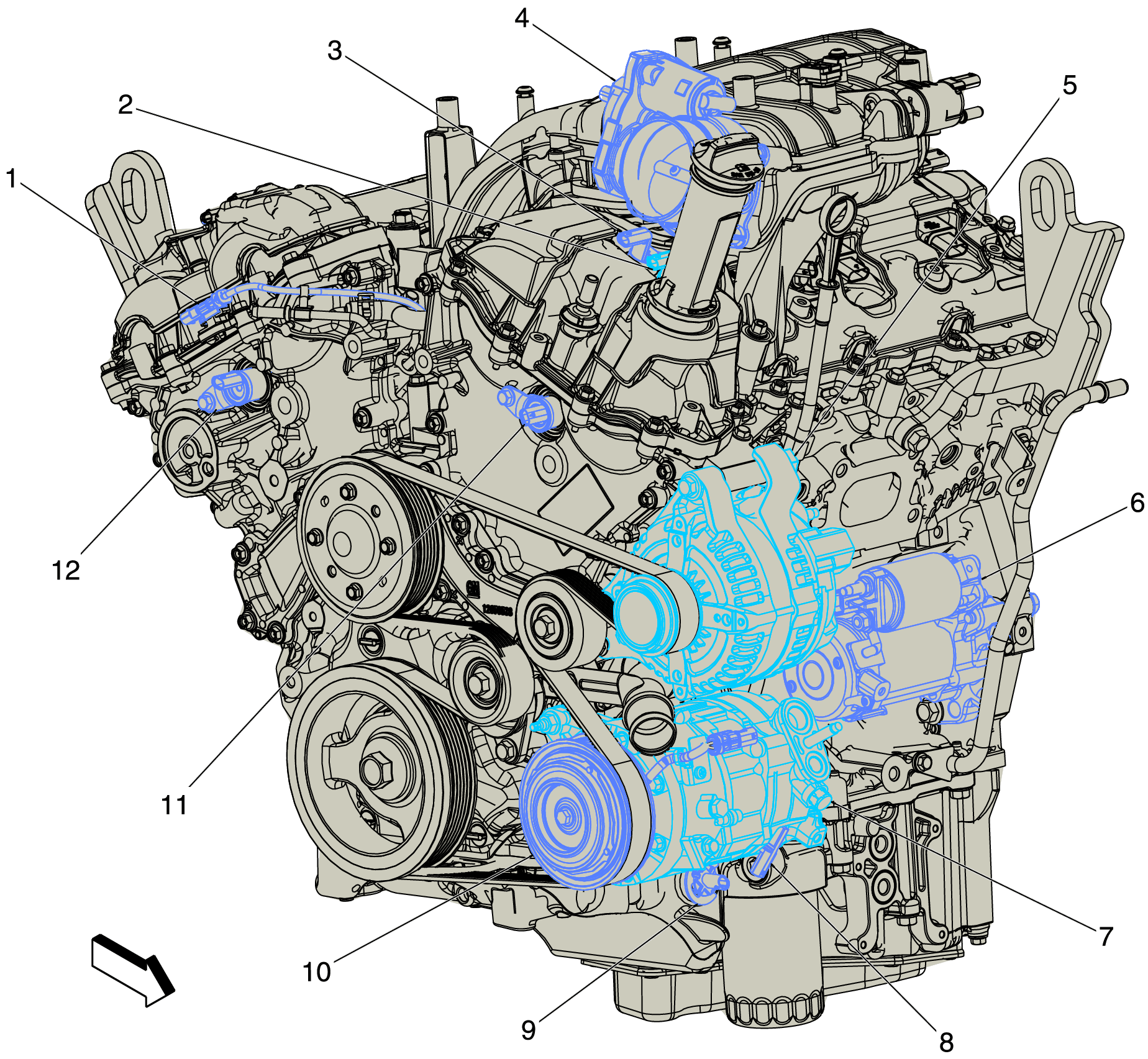

Right Front of Engine Components
Right Front of Engine Components
| Items |
|---|
| 1. B34 Engine Coolant Temperature Sensor |
| 2. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust |
| 3. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake |
| 4. Q38 Throttle Body Q38 Throttle Body |
| 5. G13 Generator G13 Generator X1 |
| 6. M64 Starter Motor M64 Starter Motor X1 |
| 7. G1 A/C Compressor |
| 8. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 9. B35 Engine Oil Level Switch B35 Engine Oil Level Switch |
| 10. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 11. Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake |
| 12. Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake |
