Automatic Transmission - Case Components [AF50-8]

Automatic Transmission - Case Components [AF50-8]

Items
1. B14A Transmission Output Shaft Speed Sensor
2. K71 Transmission Control Module K71 Transmission Control Module X1K71 Transmission Control Module X2
3. B14C Transmission Input Shaft Speed Sensor

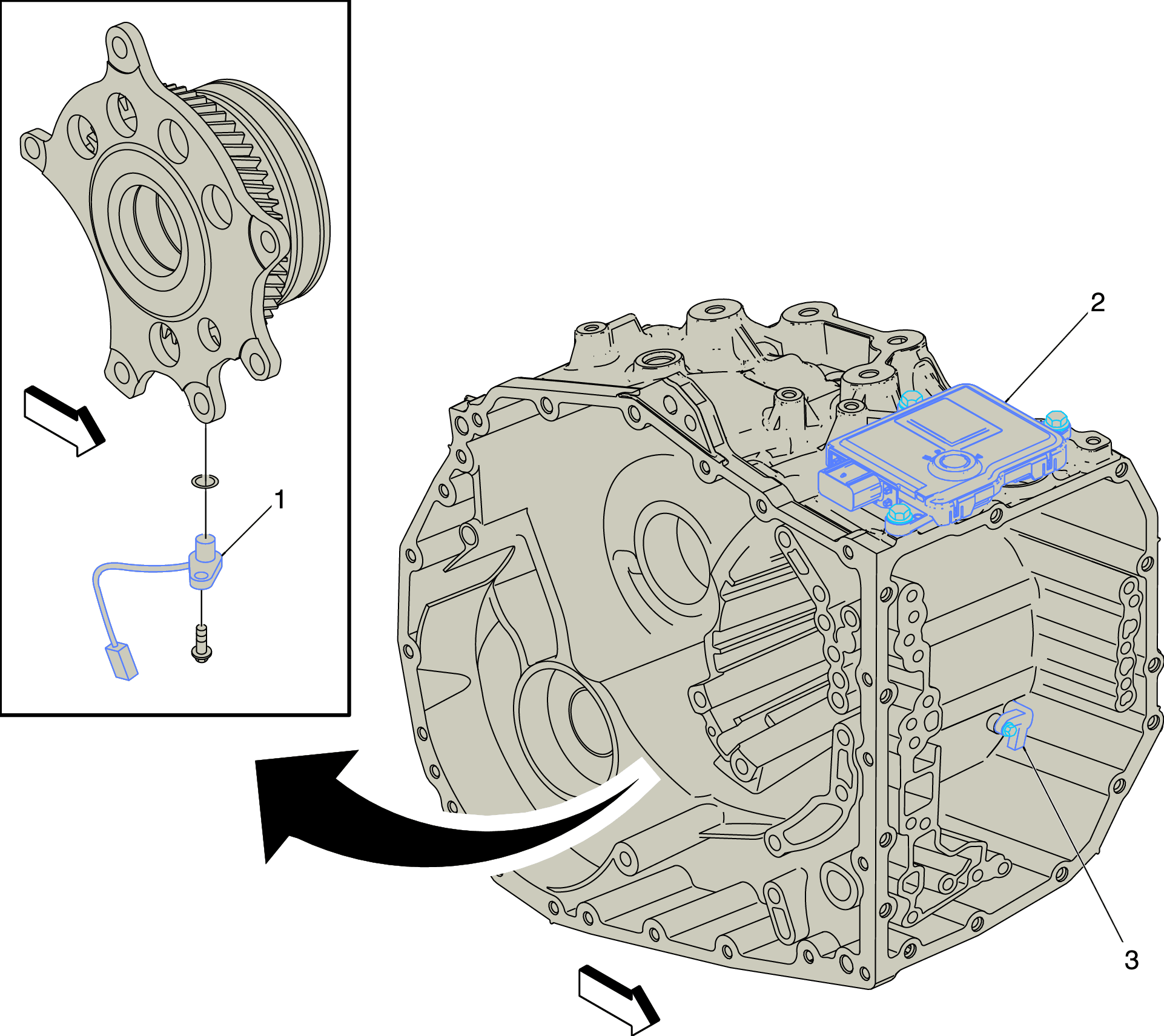

Fig 1: Automatic Transmission - Case Components [AF50-8]
GM4196639Courtesy of GENERAL MOTORS COMPANY
