Garage Door Opener Transmitter Replacement

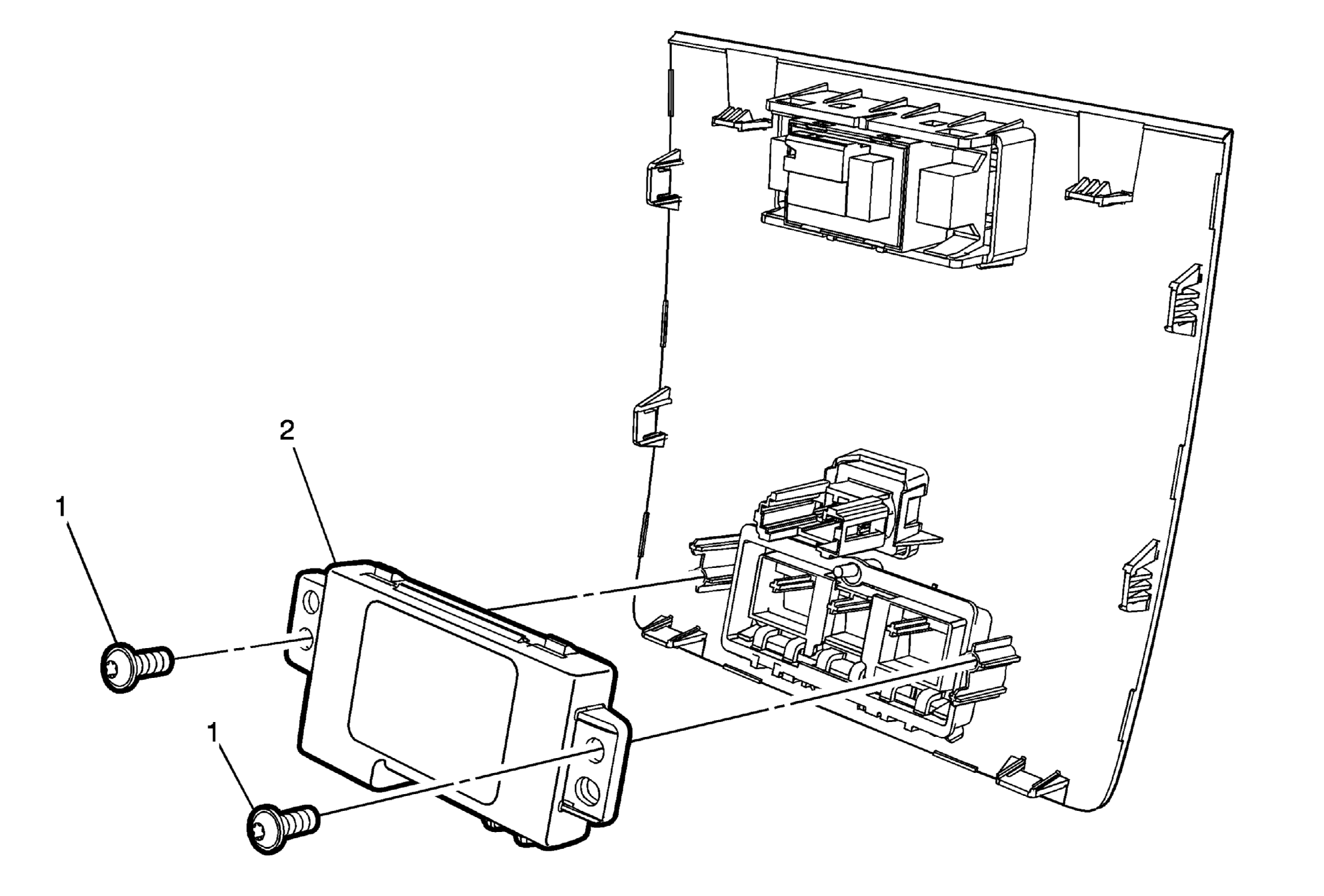

Fig 1: Garage Door Opener Transmitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Roof Console Opening Trim Plate. Refer to Roof Console Opening Trim Plate Replacement
1	Garage Door Opener Transmitter Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  1.5 N.m (13 lb in)
2	Garage Door Opener Transmitter
