Communication Interface Module Replacement (Cadillac)

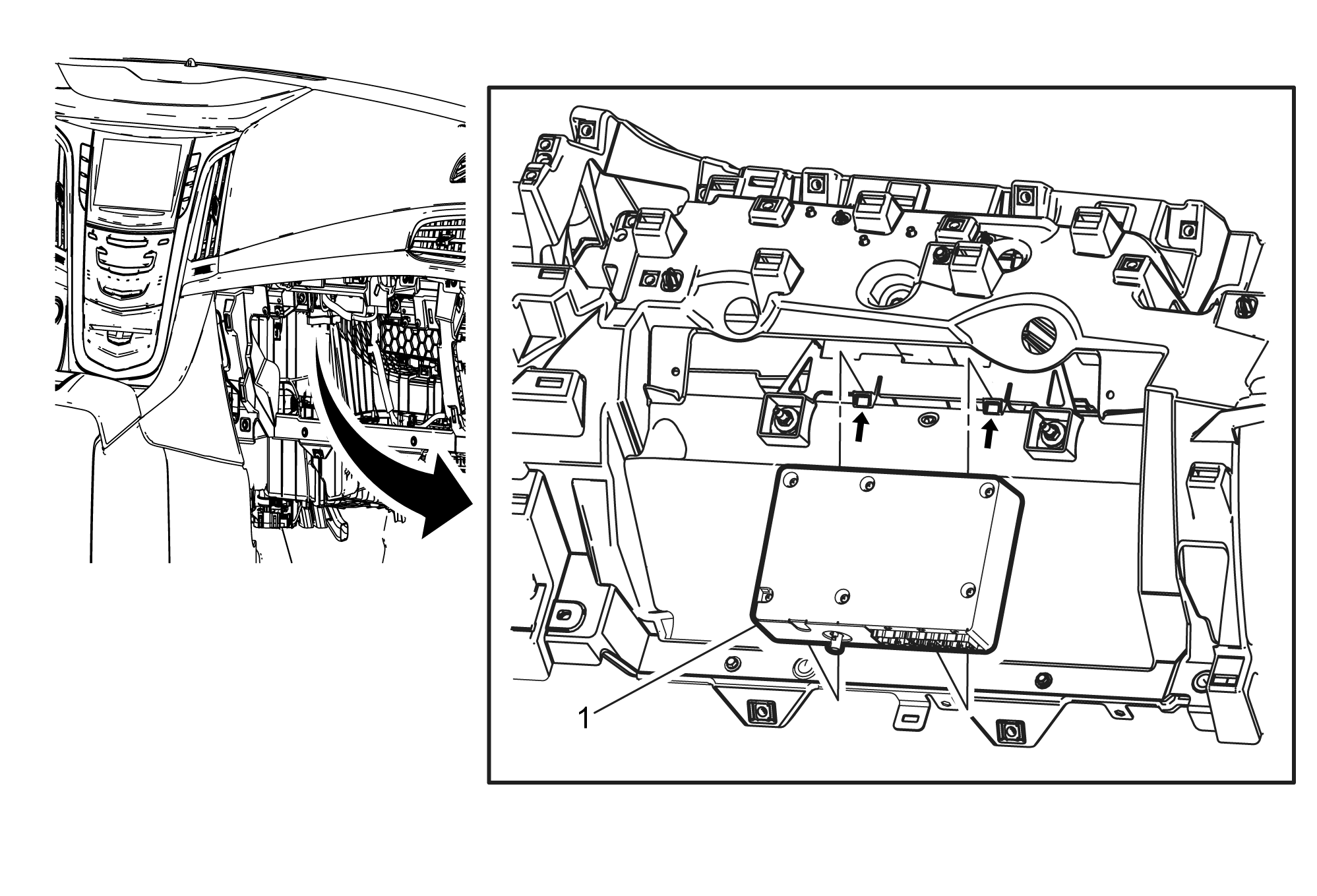

Fig 1: Communication Interface Module (Cadillac)
GM3648847Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Cadillac) .
1 Communication Interface Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the two lower bracket tabs and slide module downward.
  3. Reprogram the communication interface module after installation. Refer to Control Module References .
