Multimedia Receptacle Replacement

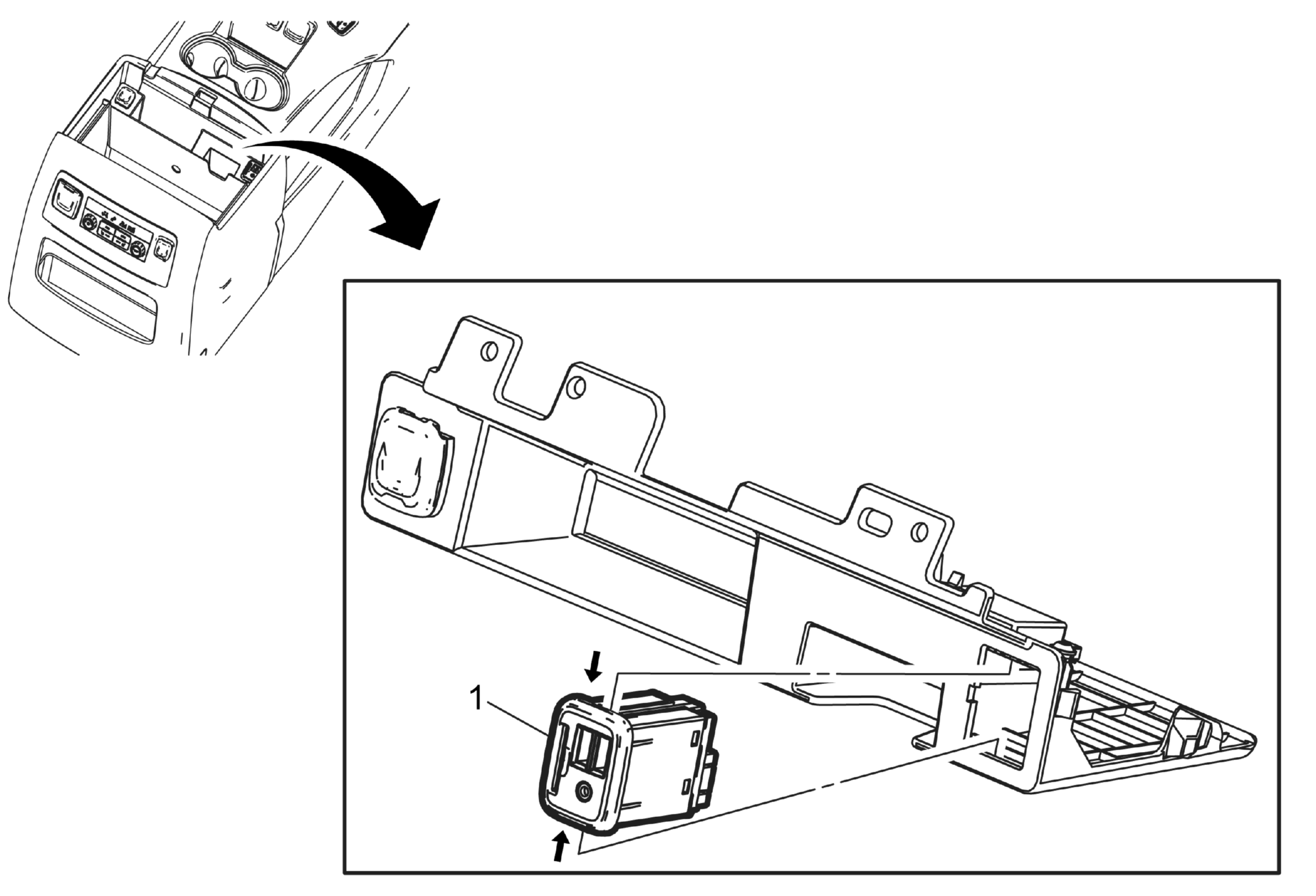

Fig 1: Multimedia Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Chevrolet / GMC)Front Floor Console Front Compartment Replacement (Cadillac) .
1	Multimedia Receptacle Procedure Depress the tabs on the receptacle to remove.
