Short Range Radar Sensor Replacement (Rear)

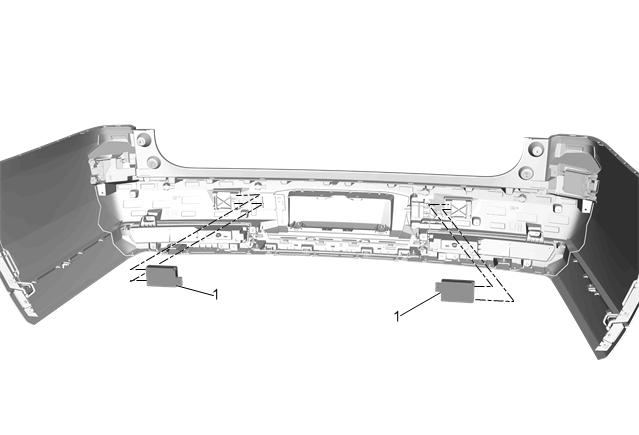

Fig 1: Short Range Radar Sensor (Rear)
GM3905366Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC)Rear Bumper Fascia Replacement (Cadillac) .
1 Short Range Radar Sensor (Qty: 2)

Procedure

  1. If replacing the left short range radar sensor on a vehicle equipped with a closure hands free module, disconnect the electrical connectors from the hands free module for access.
  2. Disconnect the electrical connector.
  3. Release the tab retainer and slide the sensor through the bracket opening to remove.
  4. For programming and set up, refer to Control Module References .
