Multifunction Relay Module Bracket Replacement

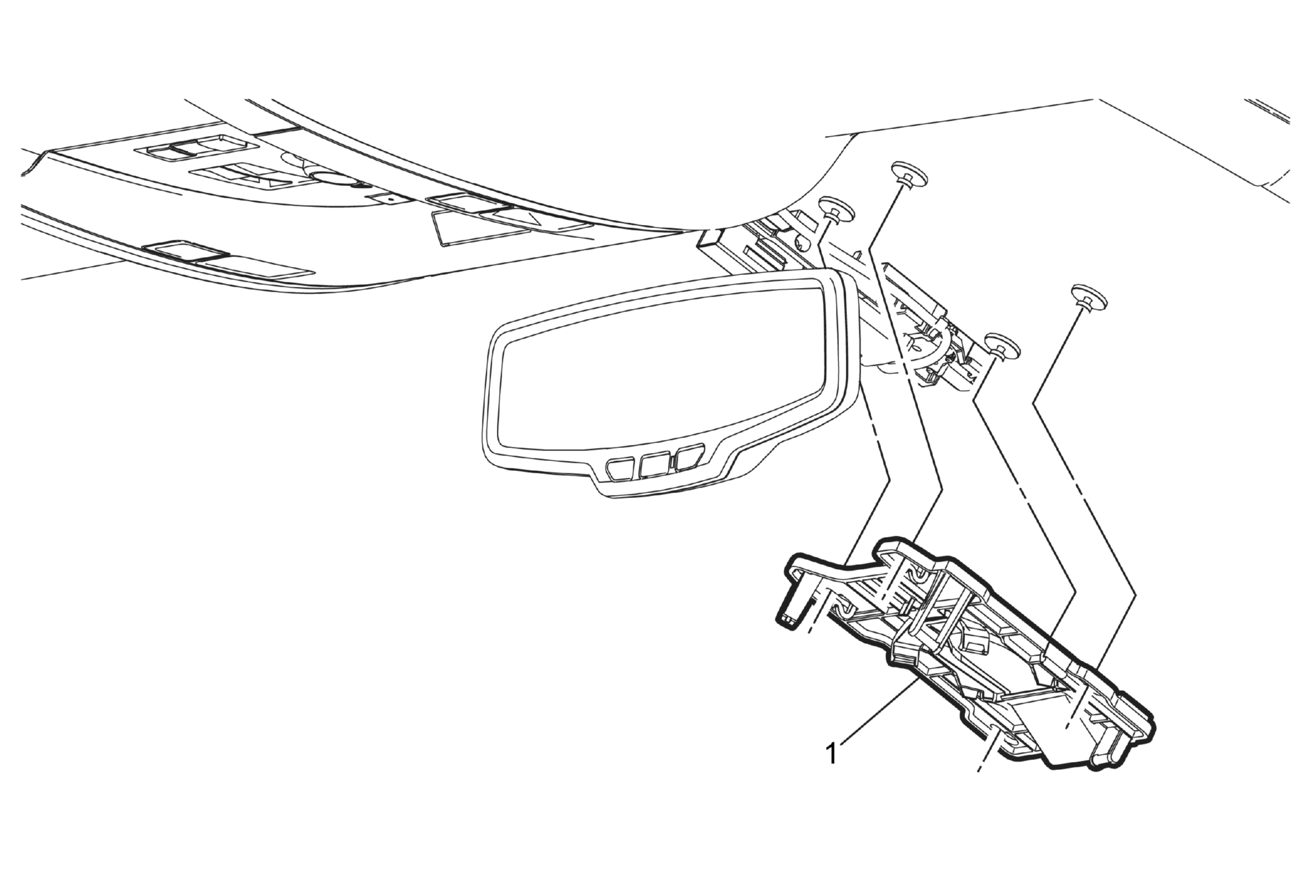

Fig 1: Multifunction Relay Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front view camera. Refer to Front View Camera Replacement .
1	Multifunction Relay Module Bracket Procedure  Slide the bracket upward to disengage tabs, gently pull from windshield.
