Front View Driver Information Camera Replacement (Cadillac)

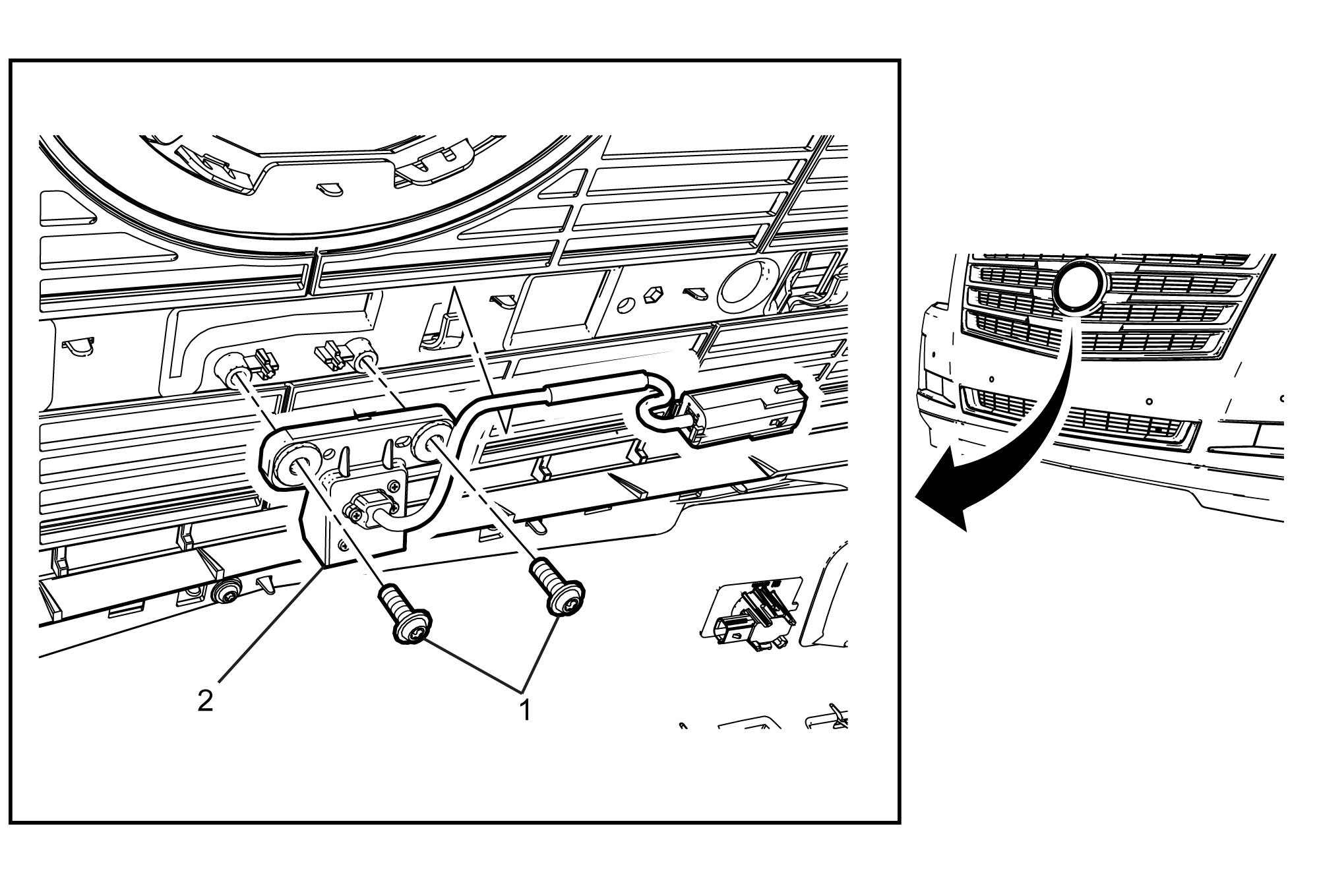

Fig 1: Front View Driver Information Camera (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Cadillac) .
1	Front View Driver Information Camera Fastener (Qty: 2) CAUTION: Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front View Driver Information Camera Procedure Disconnect the electrical connector. Unclip the camera wiring from the fascia bracket. Calibrate the driver information camera. Refer to Video Processing Control Module Calibration .

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Cadillac) .

Front View Driver Information Camera Fastener (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front View Driver Information Camera

Procedure

Disconnect the electrical connector.
Unclip the camera wiring from the fascia bracket.
Calibrate the driver information camera. Refer to Video Processing Control Module Calibration .
