Left Rear Side of Engine Components (L96)

Items
1. G13 Generator G13 Generator G13 Generator X2
2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve ((L83/L86)+MYC)Q12 Evaporative Emission Purge Solenoid Valve (L86+M5U)
3. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
4. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor ((L83/L86)+MYC)B74 Manifold Absolute Pressure Sensor (L86+M5U)
5. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (L83/L86)Q17A Fuel Injector 1
6.Q17C Fuel Injector 3 Q17C Fuel Injector 3 (L83/L86)Q17C Fuel Injector 3
7. Q17E Fuel Injector 5 Q17E Fuel Injector 5 (L83/L86)Q17E Fuel Injector 5
8. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor ((L83/L86)+MYC)B37B Engine Oil Pressure Sensor (L86+M5U)
9. Q17G Fuel Injector 7 Q17G Fuel Injector 7 (L83/L86)Q17G Fuel Injector 7
10. T8G Ignition Coil 7 T8G Ignition Coil 7 (L83/L86)
11. T8E Ignition Coil 5 T8E Ignition Coil 5 (L83/L86)
12. T8C Ignition Coil 3 T8C Ignition Coil 3 (L83/L86)
13. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor ((L83/L86)+MYC)B34 Engine Coolant Temperature Sensor (L86+M5U)
14. T8A Ignition Coil 1 T8A Ignition Coil 1 (L83/L86)

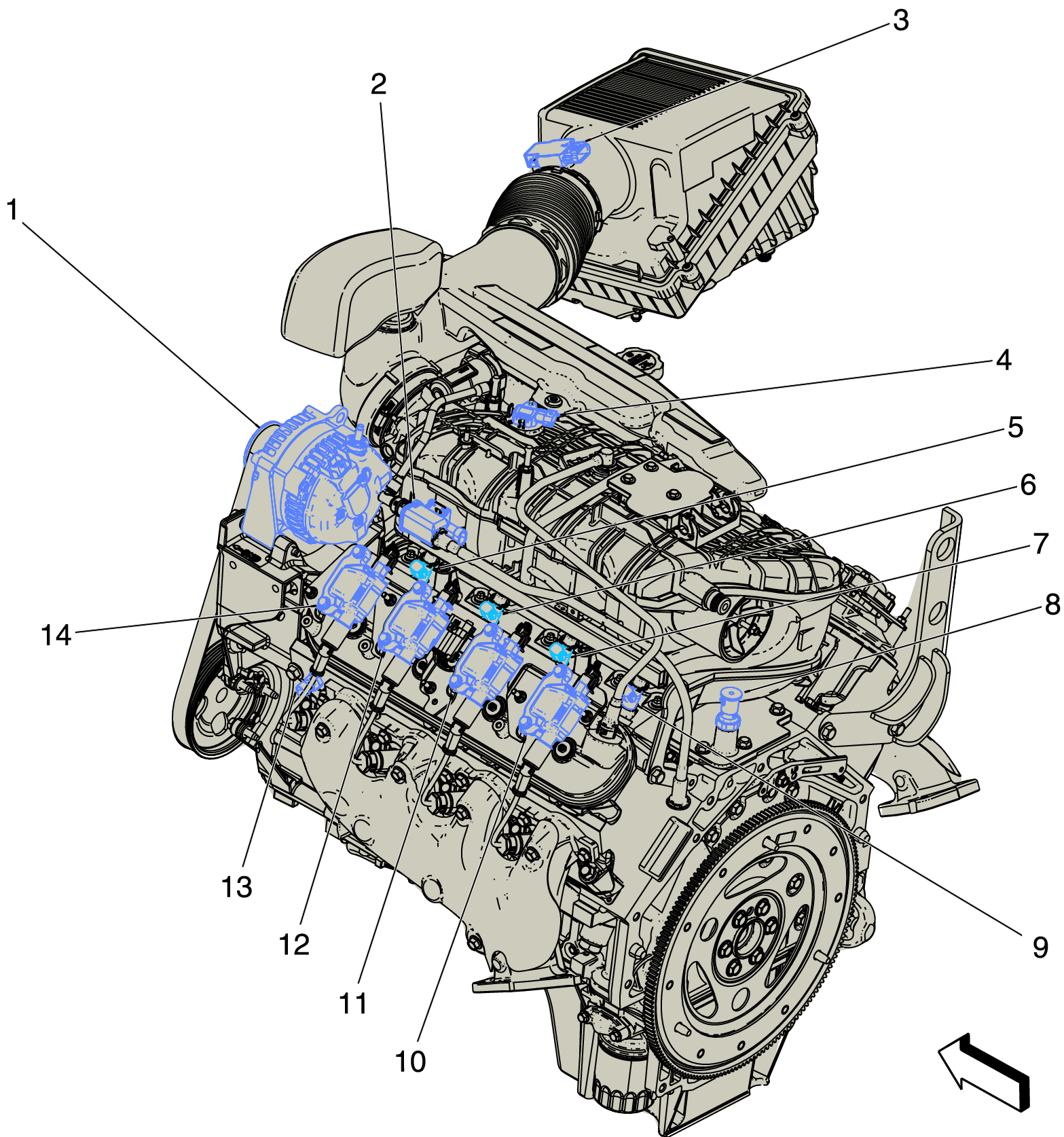

Fig 1: Left Rear Side of Engine Components (L96)

Courtesy of GENERAL MOTORS COMPANY
