Rear Seat Belt Retractor Replacement

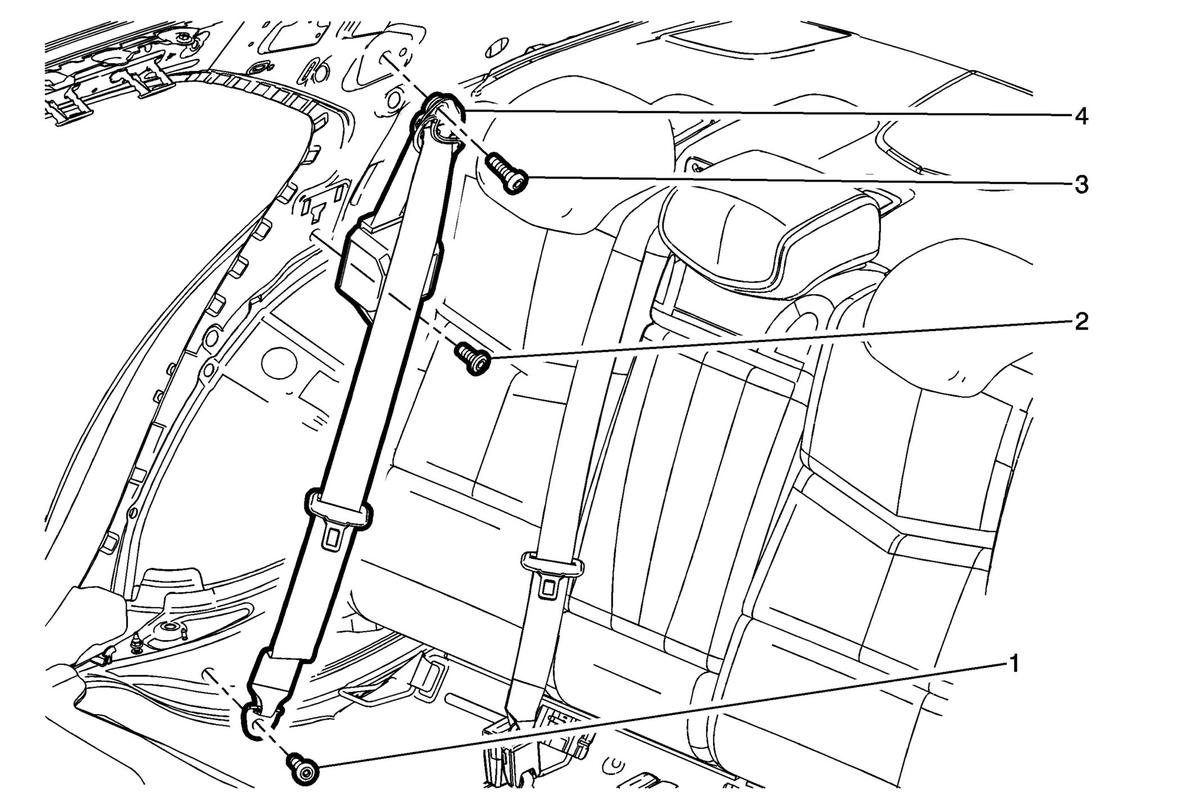

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove the rear seat back cushion bolster, if equipped. Refer to Rear Seat Back Bolster Replacement . Remove the rear seat back cushion, if equipped with fixed seat back (without AM9). Refer to Rear Seat Back Cushion Removal and Installation (without AM9) . Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .
1	Rear Seat Belt Retractor Anchor Plate Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Bolt (lower) Tighten 45 N.m (33 lb ft)
3	Rear Seat Belt Retractor Bolt (upper) Tighten 45 N.m (33 lb ft)
4	Rear Seat Belt Retractor
