Transfer Case Components (F46)

Transfer Case Components (F46)

Items
1. B109 Transfer Case Fluid Temperature Sensor (F46) B109 Transfer Case Fluid Temperature Sensor
2. M71 Transfer Case Clutch (F46) M71 Transfer Case Clutch

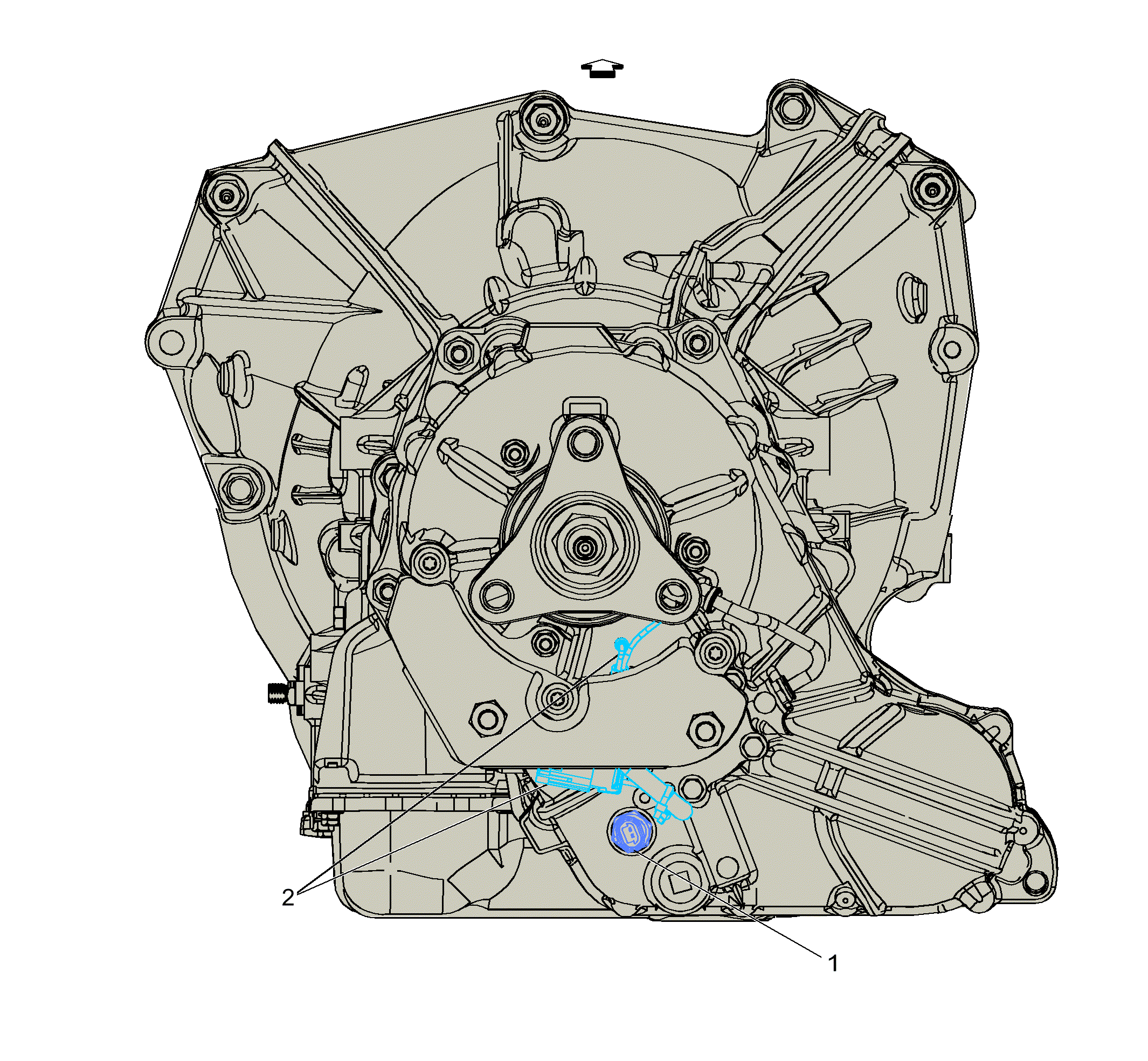

Fig 1: Transfer Case Components (F46)
GM4055908Courtesy of GENERAL MOTORS COMPANY
