Engine Oil Level Switch (LGX-F46)

Engine Oil Level Switch (LGX-F46)

Items
1. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LF3/LT4)B35 Engine Oil Level Switch (LGX)B35 Engine Oil Level Switch (LTG)

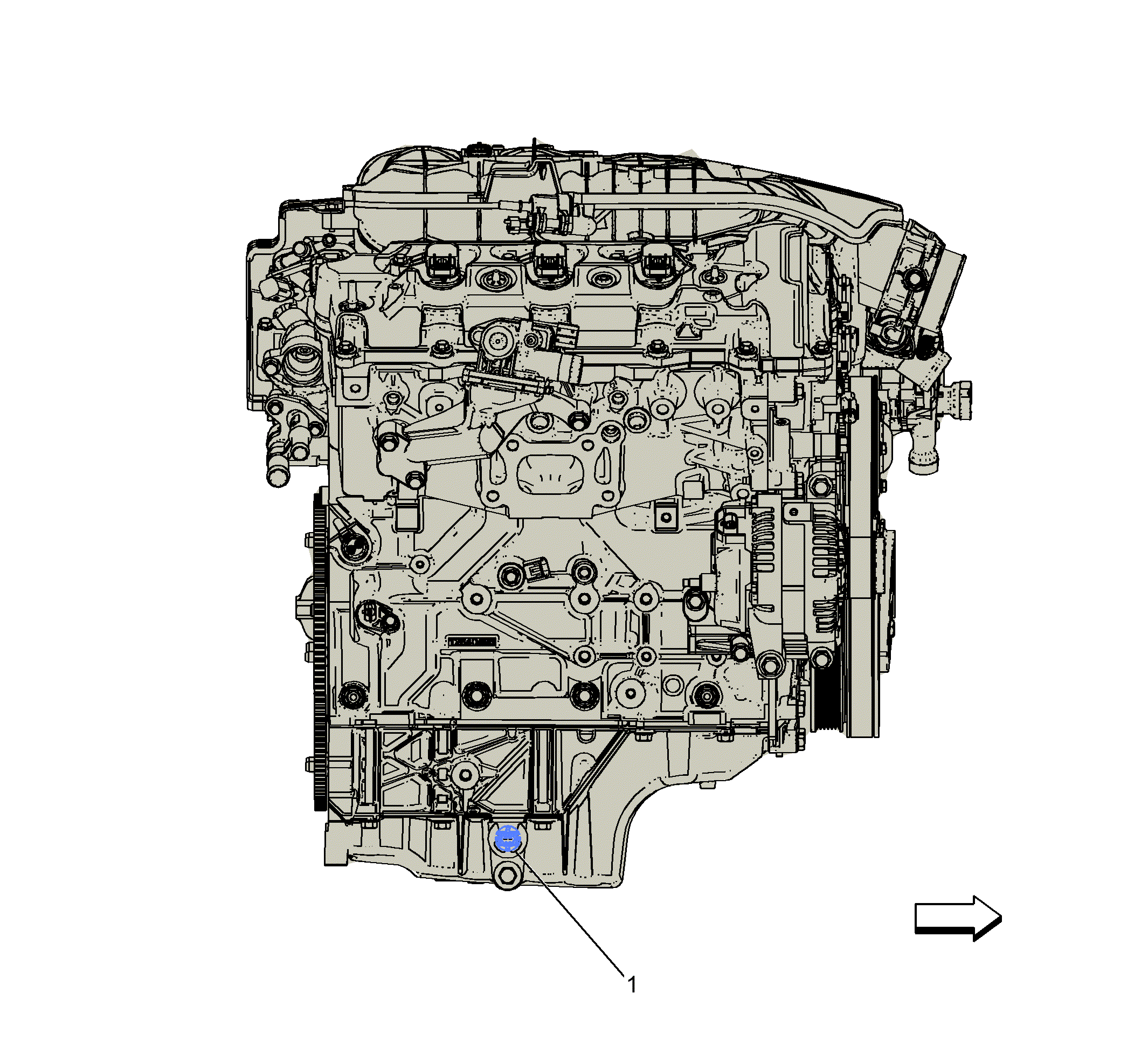

Fig 1: Engine Oil Level Switch (LGX-F46)
GM3247717Courtesy of GENERAL MOTORS COMPANY
