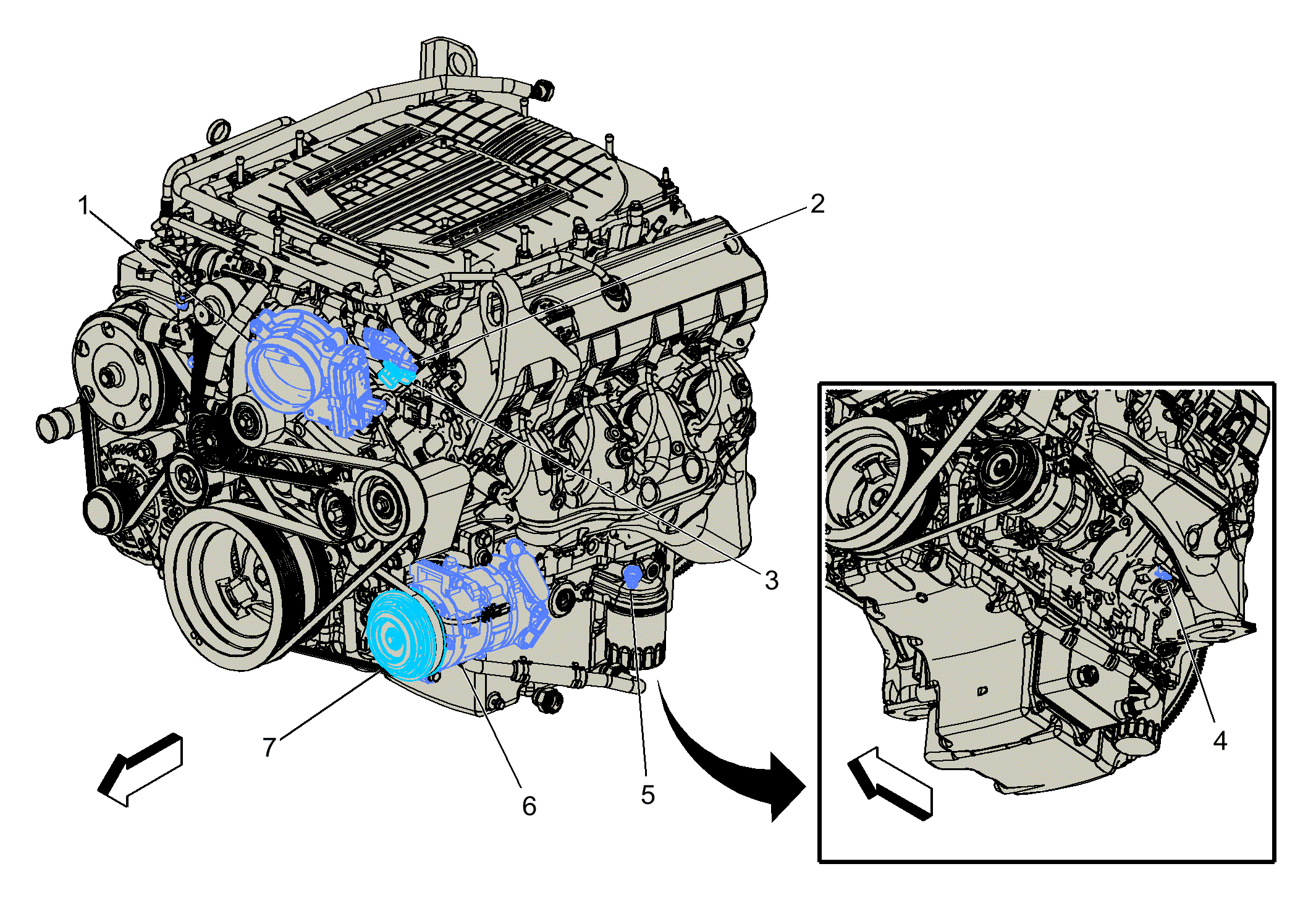

Engine Components - Left Side (LT4)
Engine Components - Left Side (LT4)
| Items |
|---|
| 1. Q38 Throttle Body Q38 Throttle Body (LGX/LTG)Q38 Throttle Body (LT4) |
| 2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3. B105 Supercharger Inlet Pressure Sensor (LT4) B105 Supercharger Inlet Pressure Sensor |
| 4. B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 5. B36 Engine Oil Temperature Sensor (LT4) B36 Engine Oil Temperature Sensor |
| 6. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 7. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
