Passenger Side Glove Box Components

Passenger Side Glove Box Components

Items
1. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
2. S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch
3. E1H Accent Lamp - Right Instrument Panel (TSP) E1H Accent Lamp - Right Instrument Panel

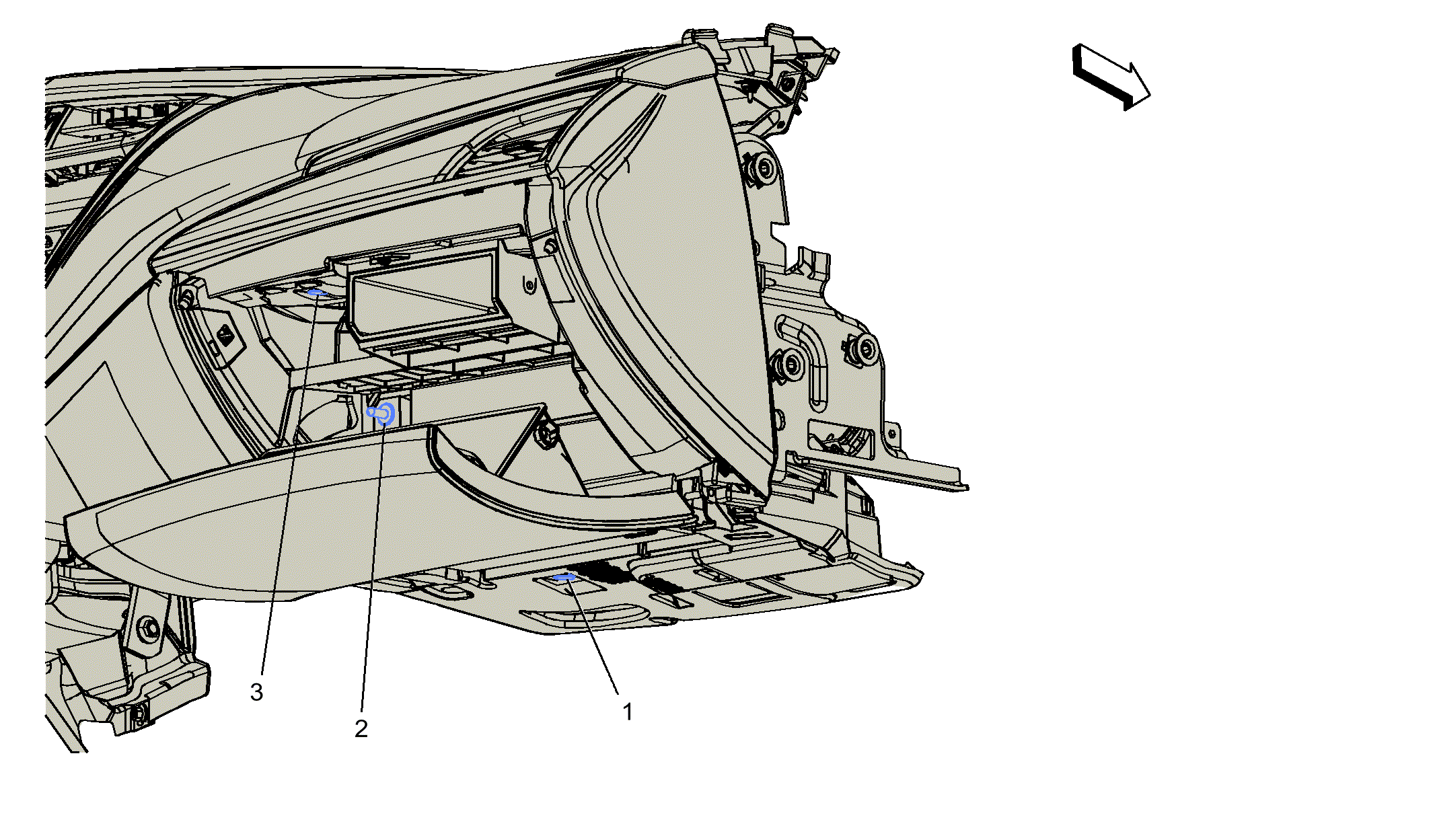

Fig 1: Passenger Side Glove Box Components
GM4515633Courtesy of GENERAL MOTORS COMPANY
