Sunroof Sunshade Motor Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

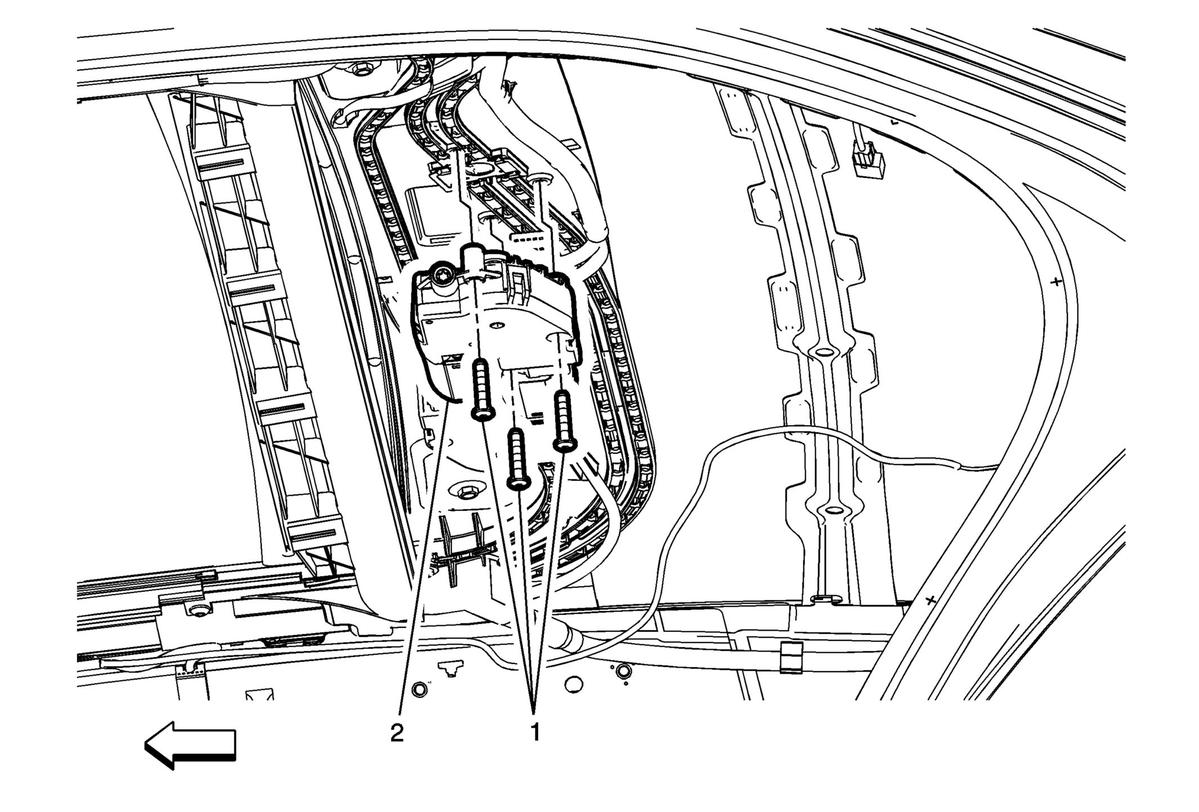

Fig 1: Sunroof Sunshade Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the headliner. Refer to Headlining Trim Panel Replacement (With Sunroof) and Headlining Trim Panel Replacement (Without Sunroof) .
1	Sunroof Sunshade Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. With a turning motion, pull downward on the sunroof sunshade motor. Disengage the motor from the drive cables. Install the sunroof sunshade motor to the frame with a turning motion. Push upward. This will engage the motor into the drive cables. Tighten 4 N.m (35 lb in)
2	Sunroof Sunshade Motor Procedure Verify the sunroof sunshade motor operation. After installing the sunroof shade motor, refer to Sunroof Window Motor Initialization .

Callout

Component Name

Preliminary Procedure
Remove the headliner. Refer to Headlining Trim Panel Replacement (With Sunroof) and Headlining Trim Panel Replacement (Without Sunroof) .

Sunroof Sunshade Motor Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
With a turning motion, pull downward on the sunroof sunshade motor. Disengage the motor from the drive cables.
Install the sunroof sunshade motor to the frame with a turning motion. Push upward. This will engage the motor into the drive cables.

Tighten
4 N.m (35 lb in)

Sunroof Sunshade Motor

Procedure

Verify the sunroof sunshade motor operation.
After installing the sunroof shade motor, refer to Sunroof Window Motor Initialization .
