Sunroof Opening Trim Finish Lace Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

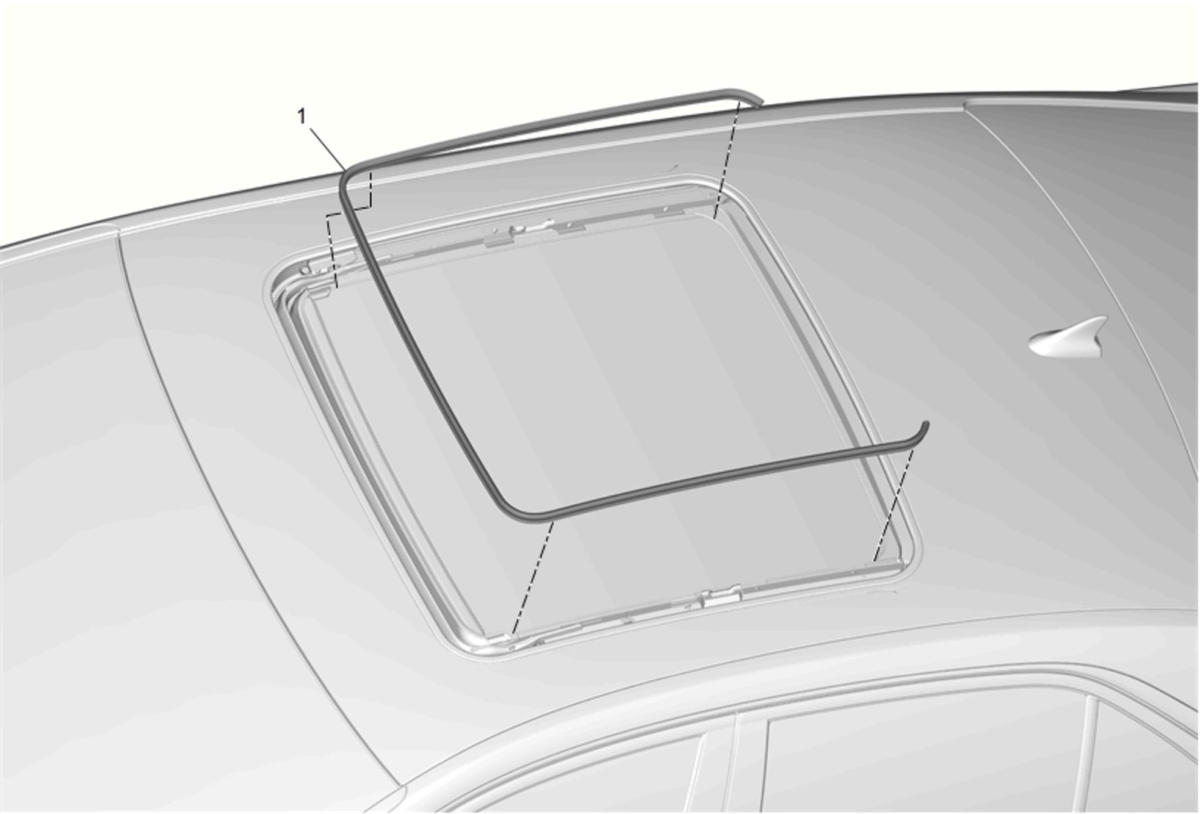

Fig 1: Sunroof Opening Trim Finish Lace

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the sunroof window rear seal. Refer to Sunroof Window Rear Seal Replacement (Trough Seal) .
1	Sunroof Opening Trim Finish Lace Procedure Remove the sunroof opening trim finish lace from the frame, starting on the left side, grasp the front edge of the seal and pull upward and away from the frame. Clean around the edge of the window and inside seat with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth. When installing the sunroof opening trim finish lace, work it back and forth in the frame until fully seated. Water test vehicle to ensure No leaks.

Callout

Component Name

Preliminary Procedure
Remove the sunroof window rear seal. Refer to Sunroof Window Rear Seal Replacement (Trough Seal) .

Sunroof Opening Trim Finish Lace

Procedure

Remove the sunroof opening trim finish lace from the frame, starting on the left side, grasp the front edge of the seal and pull upward and away from the frame.
Clean around the edge of the window and inside seat with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
When installing the sunroof opening trim finish lace, work it back and forth in the frame until fully seated.
Water test vehicle to ensure No leaks.
