Sun Load Temperature Sensor Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

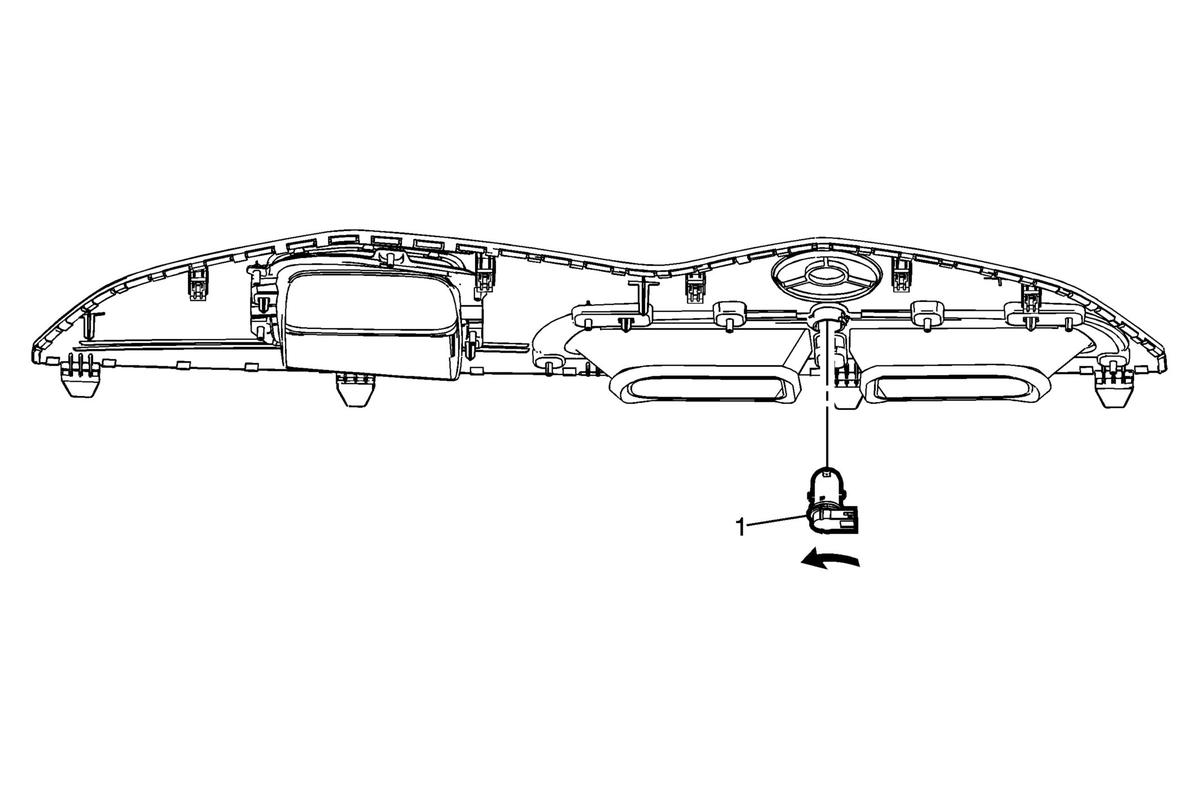

Fig 1: Sun Load Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Remove the instrument panel extension. Refer to Instrument Panel Extension Replacement .
1	Sun Load Temperature Sensor Procedures Disconnect the sun load temperature sensor electrical connector. Turn the sun load temperature sensor a quarter of a turn counter clockwise to remove.

Call out

Component Name

Preliminary Procedure
Remove the instrument panel extension. Refer to Instrument Panel Extension Replacement .

Sun Load Temperature Sensor

Procedures

Disconnect the sun load temperature sensor electrical connector.
Turn the sun load temperature sensor a quarter of a turn counter clockwise to remove.
