Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

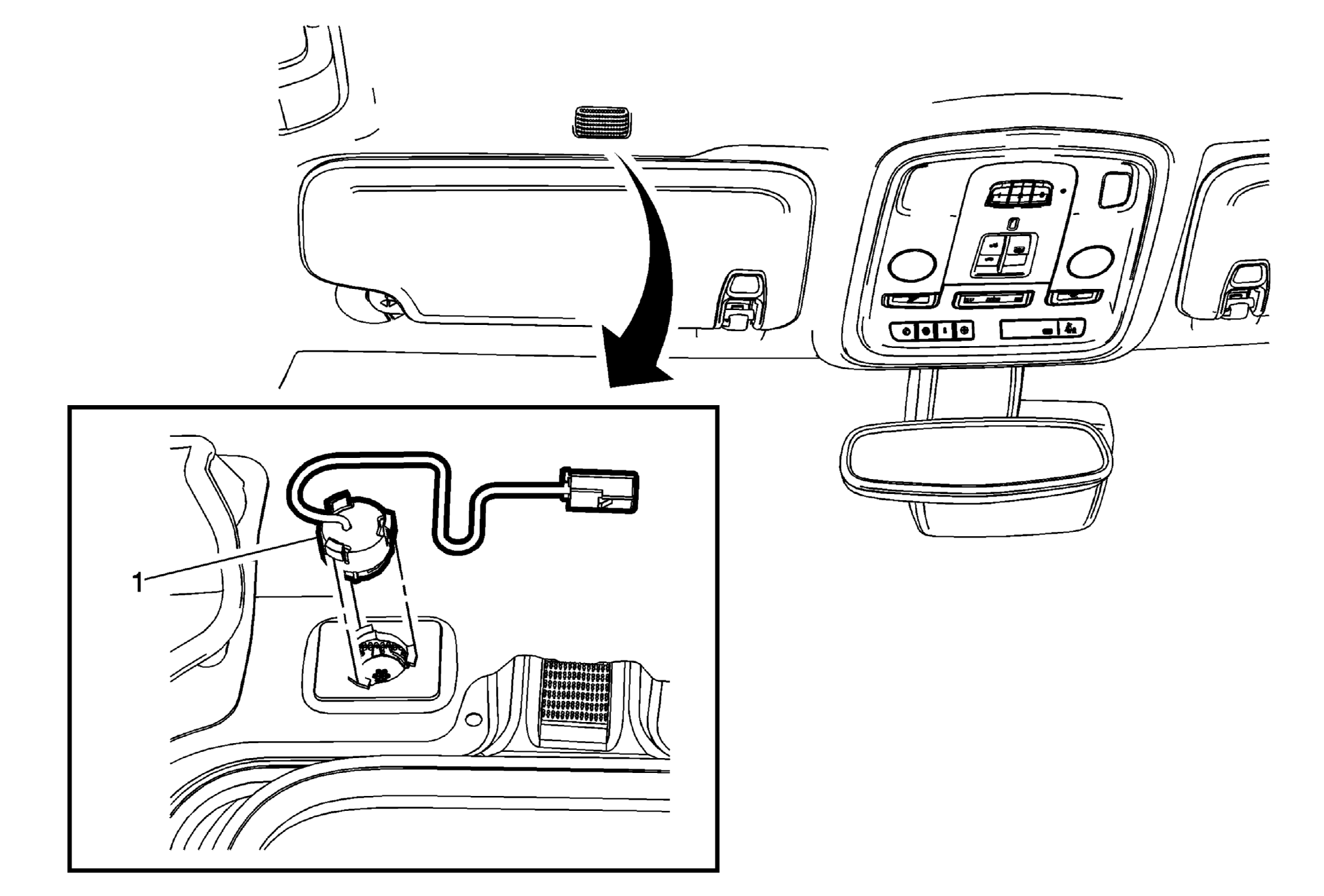

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front of the headlining trim panel to access the microphone. Refer to Headlining Trim Panel Replacement (With Sunroof) and Headlining Trim Panel Replacement (Without Sunroof) .
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Depress three tabs to release the microphone from the grille.

Callout

Component Name

Preliminary Procedure
Lower the front of the headlining trim panel to access the microphone. Refer to Headlining Trim Panel Replacement (With Sunroof) and Headlining Trim Panel Replacement (Without Sunroof) .

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
Depress three tabs to release the microphone from the grille.
