Installation Procedure

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

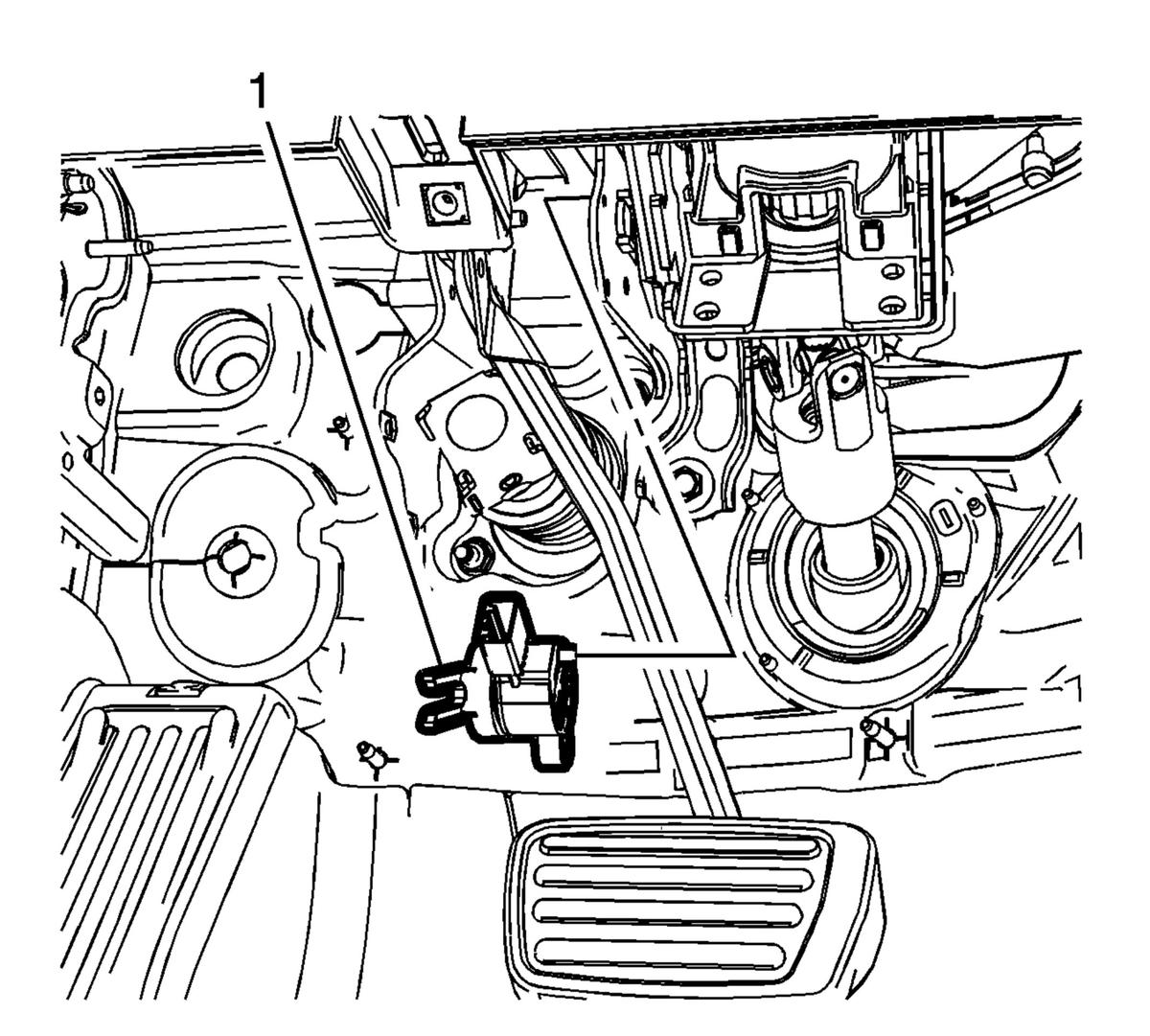

  1. Position the fork of the brake pedal position sensor (1) over the brake pedal pin and install the brake pedal position sensor.
    Fig 1: Brake Pedal Position Sensor
    GM2828490Courtesy of GENERAL MOTORS COMPANY
    NOTE: Align the locating pin on the brake pedal position sensor to the hole on the brake pedal assembly bracket.

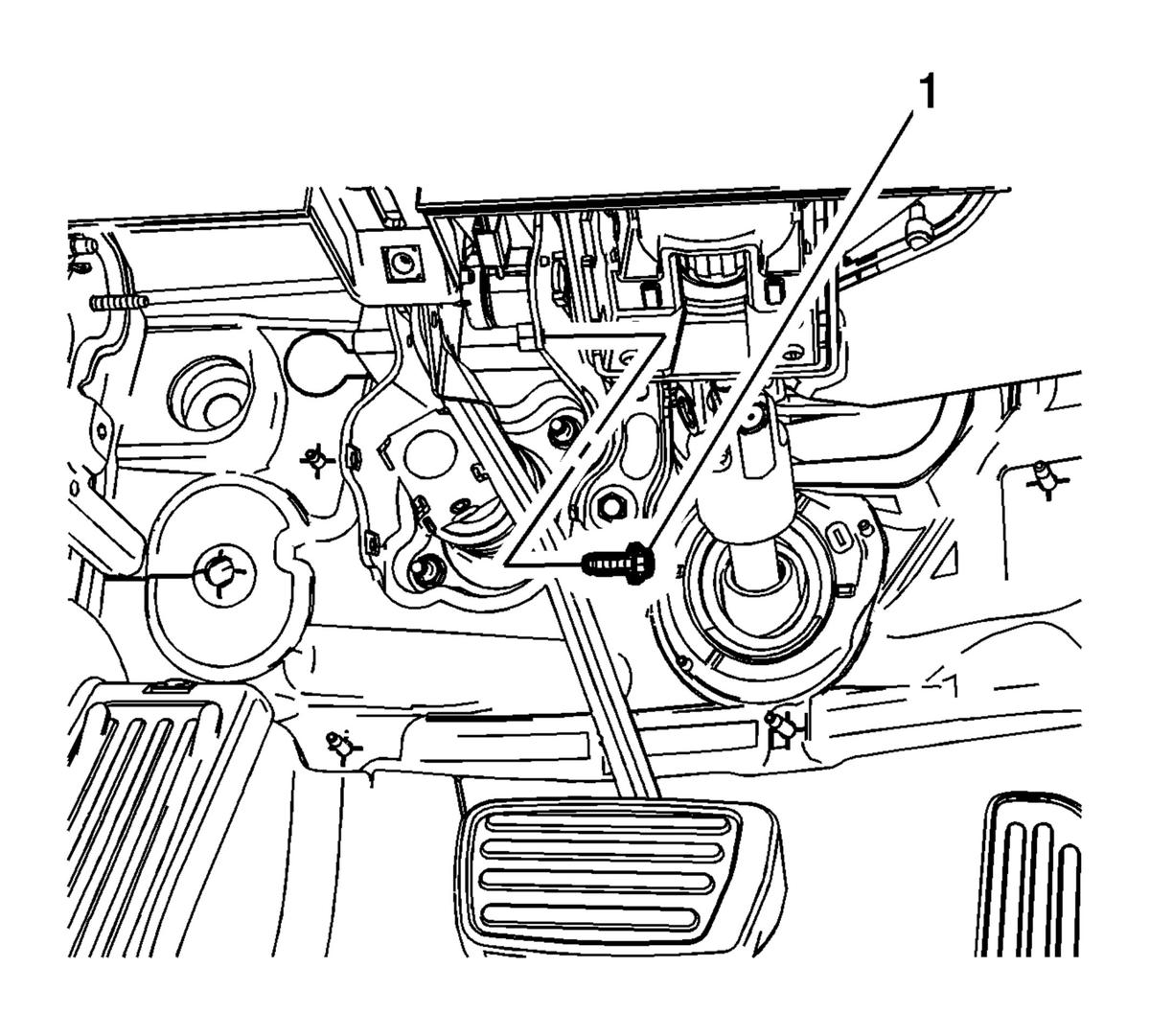

  2. Install the brake pedal position sensor bolt (1).
    Fig 2: Brake Pedal Position Sensor Bolt
    GM2828486Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Connect the brake pedal position sensor electrical connector.
  4. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
  5. Install the left side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side .
