Rear Compartment Lid Latch Release Cable Handle Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

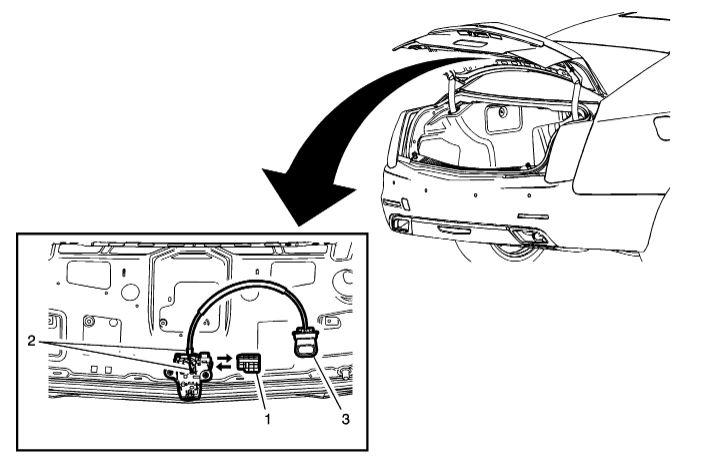

Fig 1: Rear Compartment Lid Latch Release Cable Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Latch Release Cable Handle Access Cover Procedure Depress the retainers and slide the access cover to the right to access the cable end.
2	Rear Compartment Lid Latch Release Cable Handle Procedure Disconnect the rear compartment lid inside latch handle cable from the rear compartment lid latch. Disconnect the rear compartment lid latch handle cable from the rear compartment lid.
3	Rear Compartment Lid Latch Release Cable Handle
